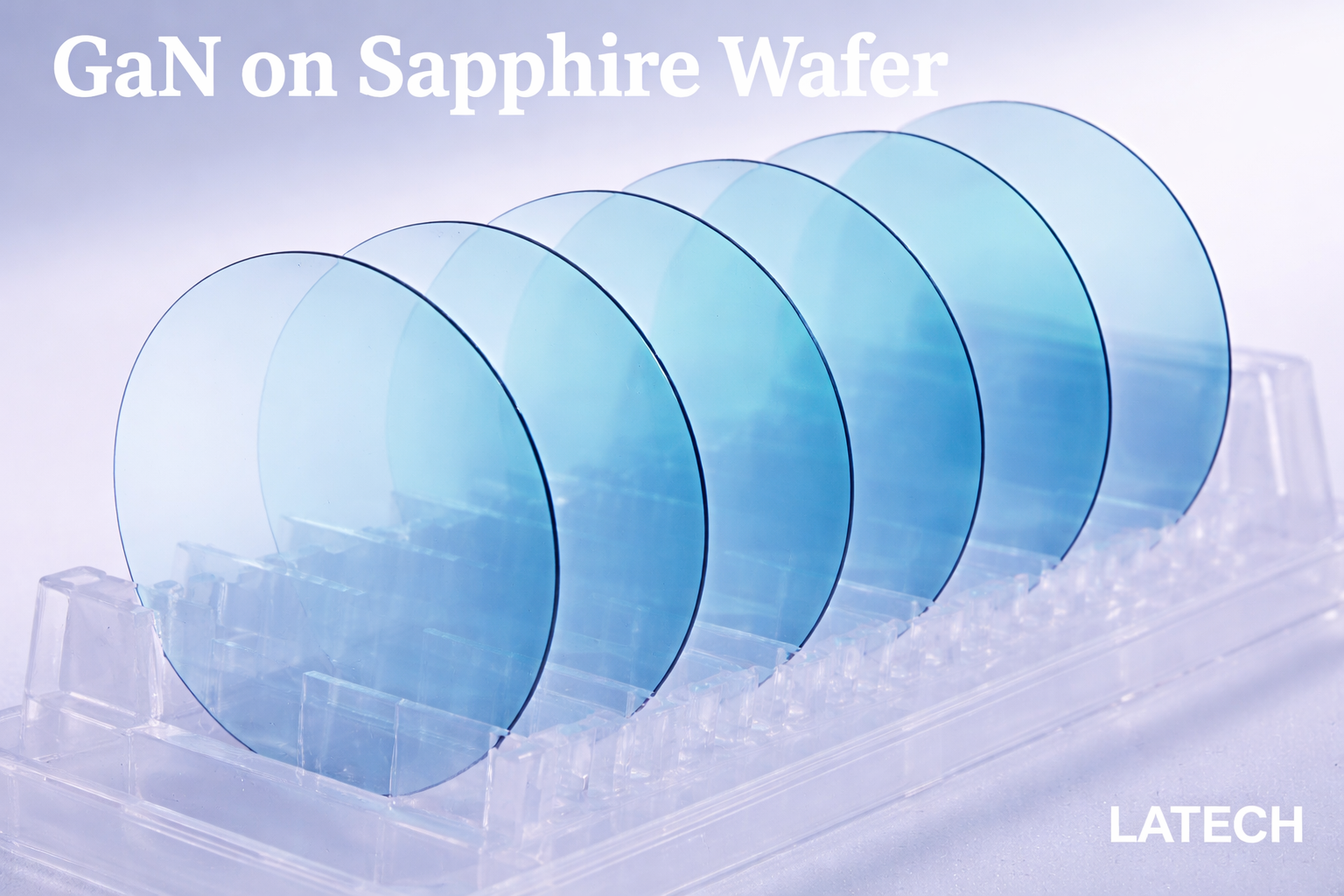

GaN on Sapphire Wafer

Wide bandgap semiconductor wafer for LED, RF, and high-power electronic applications

Enquire about this product ↗
Prefer a quick conversation?WhatsApp us +65 8176 3868

GaN on Sapphire Wafer Specifications

Overview

GaN on Sapphire wafer is a widely used epitaxial structure consisting of a gallium nitride (GaN) layer grown on a sapphire (Al₂O₃) substrate. GaN is a wide bandgap semiconductor (~3.4 eV) with high breakdown voltage and excellent thermal stability, while sapphire provides a cost-effective and reliable substrate for large-scale production. This combination makes GaN on sapphire an industry-standard platform for LEDs, RF devices, and power electronics.

Key Features

• Wide bandgap (~3.4 eV) for high-power applications

• High breakdown voltage and high-temperature stability

• Mature and cost-effective sapphire substrate

• Suitable for high-frequency and high-power devices

• Available in doped and undoped configurations

• Epi-ready surface with low defect density

Material
  • Product: Gallium Nitride on Sapphire wafer / GaN on Sapphire wafer
Dopant and Conductivity
  • N-type/Si-doped
  • N-type/Un-doped
  • P-type/Mg-doped
Orientation
C-plane, <0001>
Standard Size
  • Dia 2” (50.8 mm)
  • Dia 4” (100 mm)
Thickness
  • 430 um
  • 650 um
GaN thin film
  • 4.5 um
  • 20 um
Resistivity/Carrier concentration
  • < 0.05 ohm-cm / > 1 10E18 /cm3
  • < 0.5 ohm-cm / < 5x10E17 /cm3
  • < 10 ohm-cm / > 6x10E16 /cm3
Dislocation density
<5x10E8 cm-2
Usable area
>90%
Polishing
  • Single side epi-polished
  • double side epi-polished
  • Surface roughness: < 0.5 nm
Applications

• LED (blue / green / UV LEDs)

• RF and microwave devices

• High Electron Mobility Transistors (HEMT)

• Power electronics (high voltage / high frequency)

• Photonics and optoelectronics

Why Choose GaN on Sapphire

• Industry-standard platform for LED manufacturing

• Lower cost compared to SiC and bulk GaN

• Mature and scalable epitaxial technology

• Suitable for both research and mass production

Customization Options

• GaN thickness customization

• Doping type and concentration

• Orientation and off-cut

• Epi-structure design (AlN buffer / AlGaN layers)

• Device-ready wafers (HEMT / LED structures)
