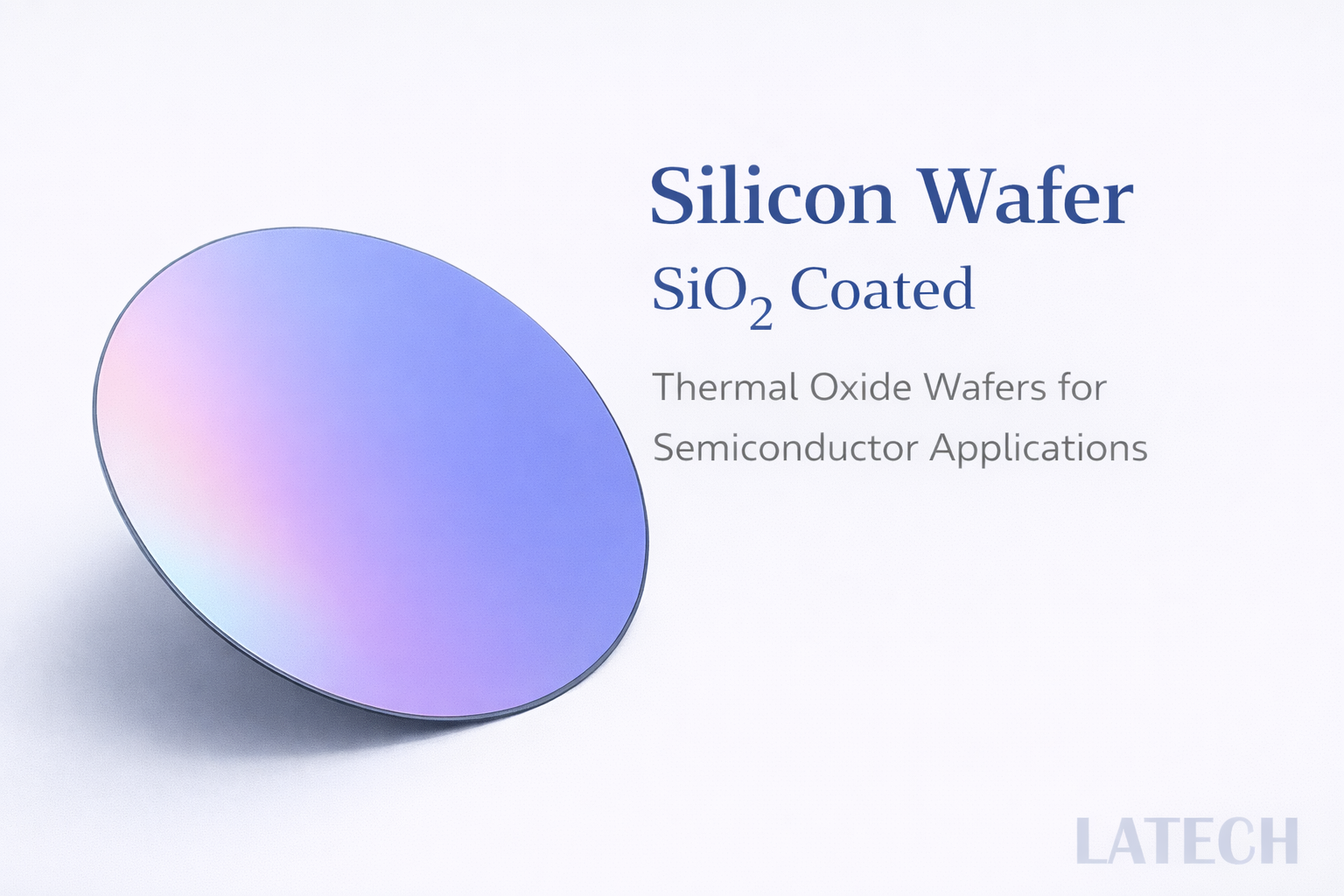

SiO₂ Coated Silicon Wafers (Thermal Oxide Wafers)

High-quality silicon wafers with precisely controlled oxide layers for semiconductor and microfabrication applications.

Add To Quote
Description

🔷 Description

Silicon wafers with a thermally grown SiO₂ layer are widely used as dielectric and passivation substrates in semiconductor and MEMS processes.

The oxide layer is formed through high-temperature thermal oxidation, ensuring excellent uniformity and stability.



🔷 Key Features

  • High-quality thermal oxide (SiO₂) layer
  • Excellent thickness uniformity
  • Single-side or double-side coating
  • Available in prime, test, or dummy grade
  • Custom specifications available



🔷 Specifications

Product: Si wafer with SiO2 (thermal oxide) layer
Production method: High temperature furnace oxidation of Si wafer

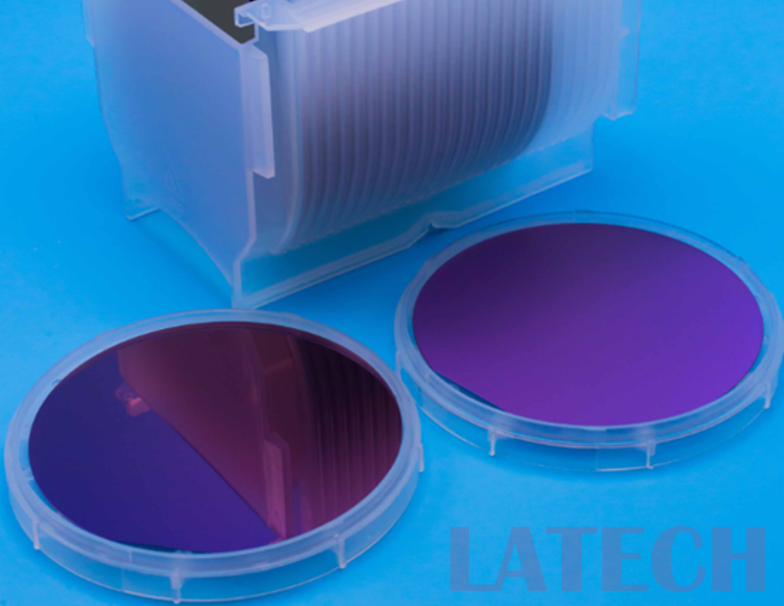

Appearance: Color changes from silver gray to purple/blue after oxidation.
Si base wafer: Oxide layer can be produced on Si wafer of any grade (prime / dummy / solar / etc)
SiO2 coating:

• Oxide layer coated on double sides

  Oxidation in air naturally produced oxide layer on both sides of the wafers.

• Oxide layer coated on single side

  SiO2 layer on back side (usually non-polished side) can be removed upon request.

Oxide layer thickness: 10 nm up to 10 um
Polishing:

• As-cut wafers without polishing

• Single side epi-polished

• Double side epi-polished



🔷 Applications

  • Semiconductor fabrication
  • MEMS processing
  • Dielectric layers
  • Surface passivation
  • Thin film deposition
