Wafer

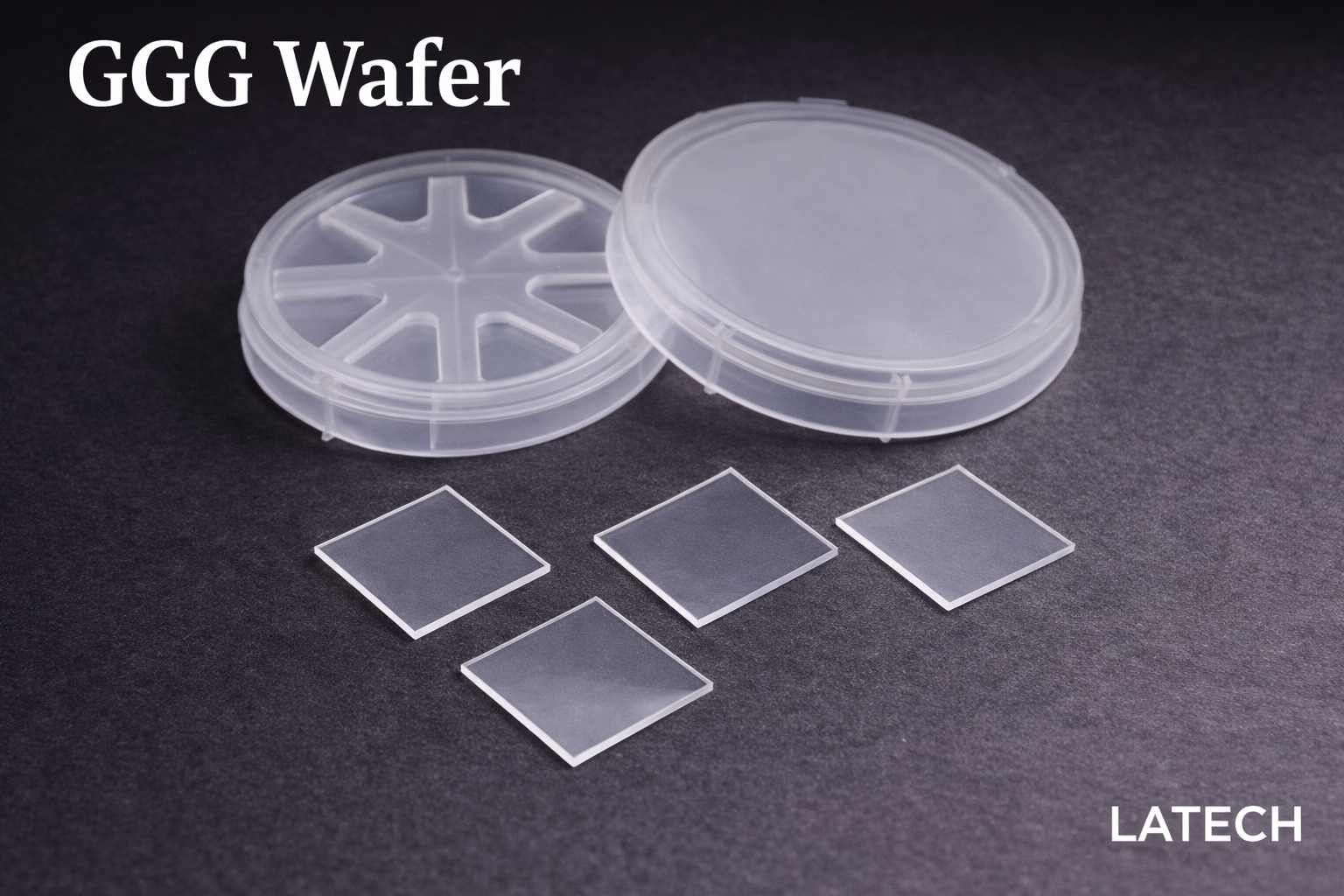

GGG Wafer (Gadolinium Gallium Garnet, Gd₃Ga₅O₁₂ Wafer)

High-quality garnet substrate for magnetic thin films and oxide epitaxy

Enquire about this product ↗
Prefer a quick conversation?WhatsApp us +65 8176 3868

GGG Wafer (Gadolinium Gallium Garnet, Gd₃Ga₅O₁₂ Wafer) Specifications

Overview

GGG (Gadolinium Gallium Garnet, Gd₃Ga₅O₁₂) wafer is a cubic single crystal widely used as a substrate for epitaxial growth of magnetic garnet films such as YIG. It provides excellent lattice matching, high thermal stability, and superior surface quality, making it an ideal choice for spintronic, microwave, and magneto-optical applications.

Key Features

• Cubic garnet crystal structure

• Excellent lattice matching with YIG (low mismatch ~0.03%)

• High thermal and chemical stability

• Epi-ready surface with ultra-low roughness (< 0.5 nm)

• Low defect density for high-quality thin film growth

Material property
  • Material: Gd3Ga5O12 (GGG)
  • Crystal structure: Cubic
  • Lattice constant: a =12.376Å
  • Density: 7.09 g/cm3
  • Melting point: 1800 °C
  • Growth Method: CZ
Dimension
  • 5 × 5 × 0.5 mm
  • 10 × 10 × 0.5 mm
  • Other sizes customizable
Orientation
<100> / <110> / <111>
Polishing
  • Single side / double side epi-polished
  • Surface roughness: < 0.5 nm
Applications

• YIG (Y₃Fe₅O₁₂) thin film growth

• Spintronics and magnonics devices

• Microwave and RF components

• Magneto-optical devices

• Oxide thin film epitaxy

Customization Options

• Orientation and off-cut customization

• Thickness and dimension customization

• Double-side polishing (DSP) available

• Epi-ready surface treatment
