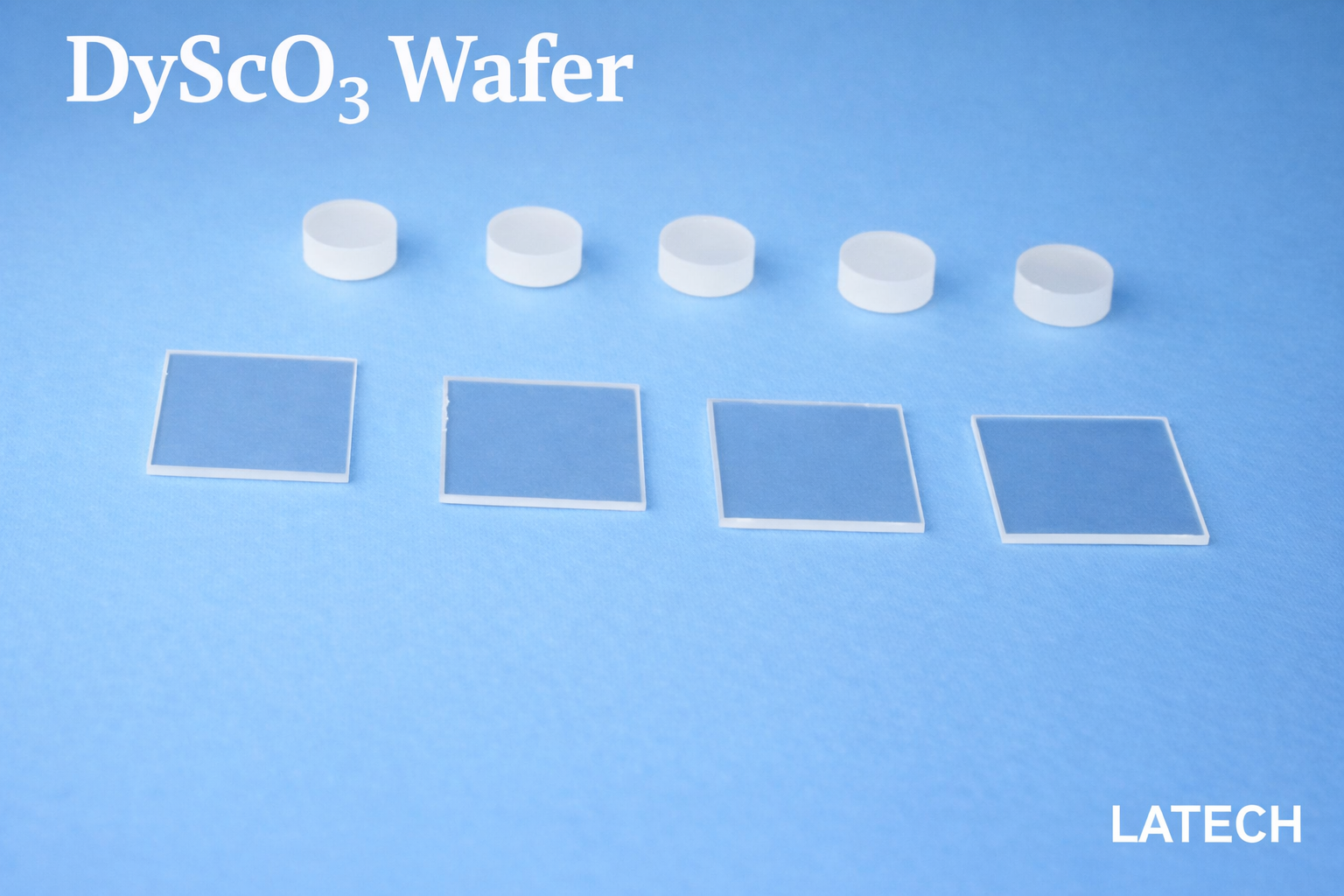

View details →DyScO₃ Wafer (Dysprosium Scandate Wafer)
High-quality rare-earth scandate substrate for oxide epitaxy and strain engineering
DyScO₃ Wafer (Dysprosium Scandate Wafer) Specifications
- Overview
DyScO₃ (Dysprosium Scandate) wafer is an orthorhombic perovskite single crystal widely used as a substrate for epitaxial growth of complex oxide thin films. It offers excellent lattice matching and is especially suitable for strain engineering and high-performance functional oxide devices.
- Key Features
• Orthorhombic perovskite crystal structure
• Excellent lattice matching for perovskite thin films
• Ideal for strain engineering applications
• High thermal and chemical stability
• Epi-ready surface with ultra-low roughness (< 0.5 nm)- Material property
- Product: DyScO3 Wafer
- Crystal structure: Orthorhombic
- Lattice constant: a = 5.44 Å, b = 5.71 Å, c = 7.89 Å,
- Melting point: 2127 °C
- Dimension
- 5 × 5 × 0.5 mm
- 10 × 10 × 0.5 mm
- Other sizes customizable
- Orientation
- <001> / <110>
- Polishing
- Single side / double side epi-polished
- Surface roughness: < 0.5 nm
- Applications
• Perovskite oxide thin film epitaxy
• Ferroelectric and multiferroic devices
• High-k dielectric research
• Strain engineering of functional materials
• Advanced semiconductor and quantum materials- Customization Options
• Orientation and off-cut customization
• Thickness and dimension customization
• Double-side polishing (DSP) available
• Epi-ready surface treatment
