Micro Fluorescence Cuvette with Lid
Low-volume cuvette for fluorescence measurements with four optical windows
Description
Description
These micro fluorescence cuvettes are designed for fluorometry applications and feature four optical clear walls for multi-directional light transmission.
With reduced sample volume, they are ideal for precious or limited samples requiring fluorescence analysis.
Fluorescence measurements require detection at a 90° angle to the excitation light, making four optical windows essential for accurate results.
Supplied with a removable lid, these cuvettes provide convenient handling for routine fluorescence testing where sealing is not critical.
Available in quartz and optical glass materials, suitable for UV and visible wavelength applications.
Key Features
- Four optical clear walls for fluorescence detection
- Designed for 90° emission measurement geometry
- Low sample volume for minimal sample consumption
- Removable lid for easy and convenient operation
- Ideal for routine fluorescence measurements
- Compatible with most fluorometers
- Available in quartz and optical glass
When should you choose a micro fluorescence cuvette with lid?
- When performing fluorescence spectroscopy
- When sample volume is limited or expensive
- When routine testing is required without strict sealing
- When fast and convenient handling is preferred
Fused Cells – for All Type of Solvents
The quartz/glass walls of the cells are fused together at high temperature and are suitable for usage in all type of solvents.
|
Outside Dimension (mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| 45 × 12.5 × 12.5 | 10 | 1 | 0.35 | 7F-Q-10 | 7F-I-10 | 7F-G-10 |
| 45 × 12.5 × 12.5 | 10 | 2 | 0.7 | 18F-Q-10 | 18F-I-10 | 18F-G-10 |
| 45 × 12.5 × 12.5 | 10 | 3 | 1 | 8F-Q-10 | 8F-I-10 | 8F-G-10 |
| 45 × 12.5 × 12.5 | 10 | 4 | 1.4 | 9F-Q-10 | 9F-I-10 | 9F-G-10 |
| 45 × 12.5 × 12.5 | 10 | 5 | 1.7 | 10F-Q-10 | 10F-I-10 | 10F-G-10 |
Glued Cells – for Aqueous (Water-Based) Solvents Only
The quartz/glass walls of the cells are glued together and are recommended for usage in aqueous solvents only.
|
Outside Dimension (mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| 45 × 12.5 × 12.5 | 10 | 1 | 0.35 | Q-504 | I-504 | G-504 |
| 45 × 12.5 × 12.5 | 10 | 2 | 0.7 | Q-514 | I-514 | G-514 |
| 45 × 12.5 × 12.5 | 10 | 3 | 1 | Q-524 | I-524 | G-524 |
| 45 × 12.5 × 12.5 | 10 | 4 | 1.4 | Q-534 | I-534 | G-534 |
| 45 × 12.5 × 12.5 | 10 | 5 | 1.7 | Q-544 | I-544 | G-544 |
Related Products
Large Volume Quartz Cuvette (Liquid Sample Pool, Rectangular)
Special Cell
Cuvettes
Designed for large-volume liquid analysis (3.5–74.6 mL) where standard cuvettes are not suitable. Ideal for applications requiring higher sample volume or non-standard testing conditions.
Micro Volume Quartz Cuvette (Frosted Walls with Lid, 2 Optical Windows)
Special Cell
Cuvettes
Designed for micro-volume UV-Vis measurements (0.15–0.60 mL) with improved light control using frosted walls and a secure lid to minimize evaporation.

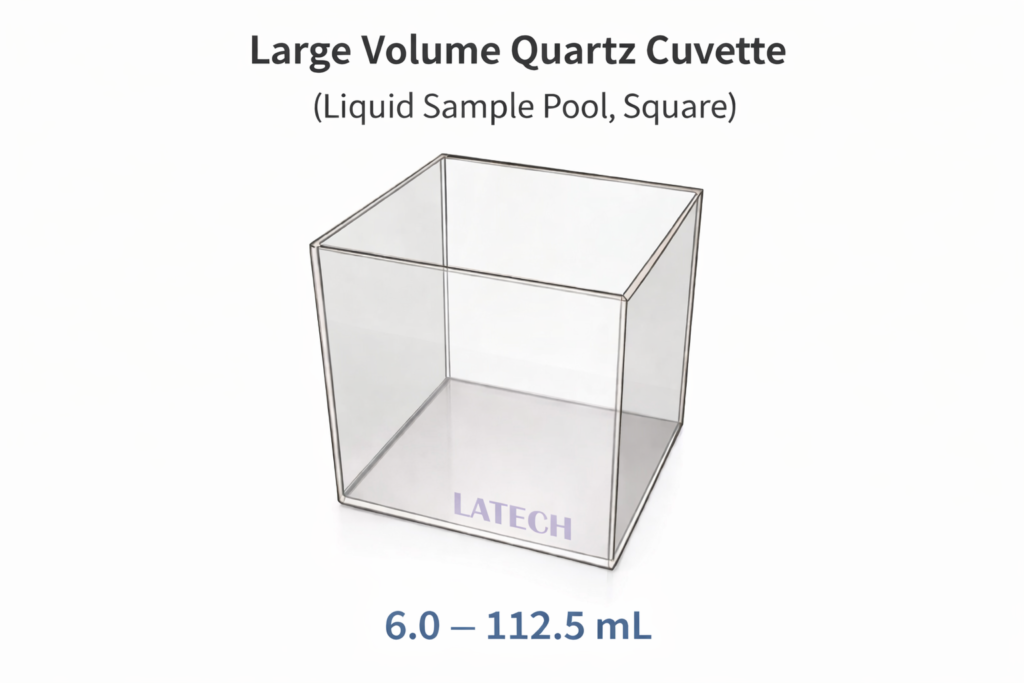

Large Volume Quartz Cuvette (Liquid Sample Pool, Square)
