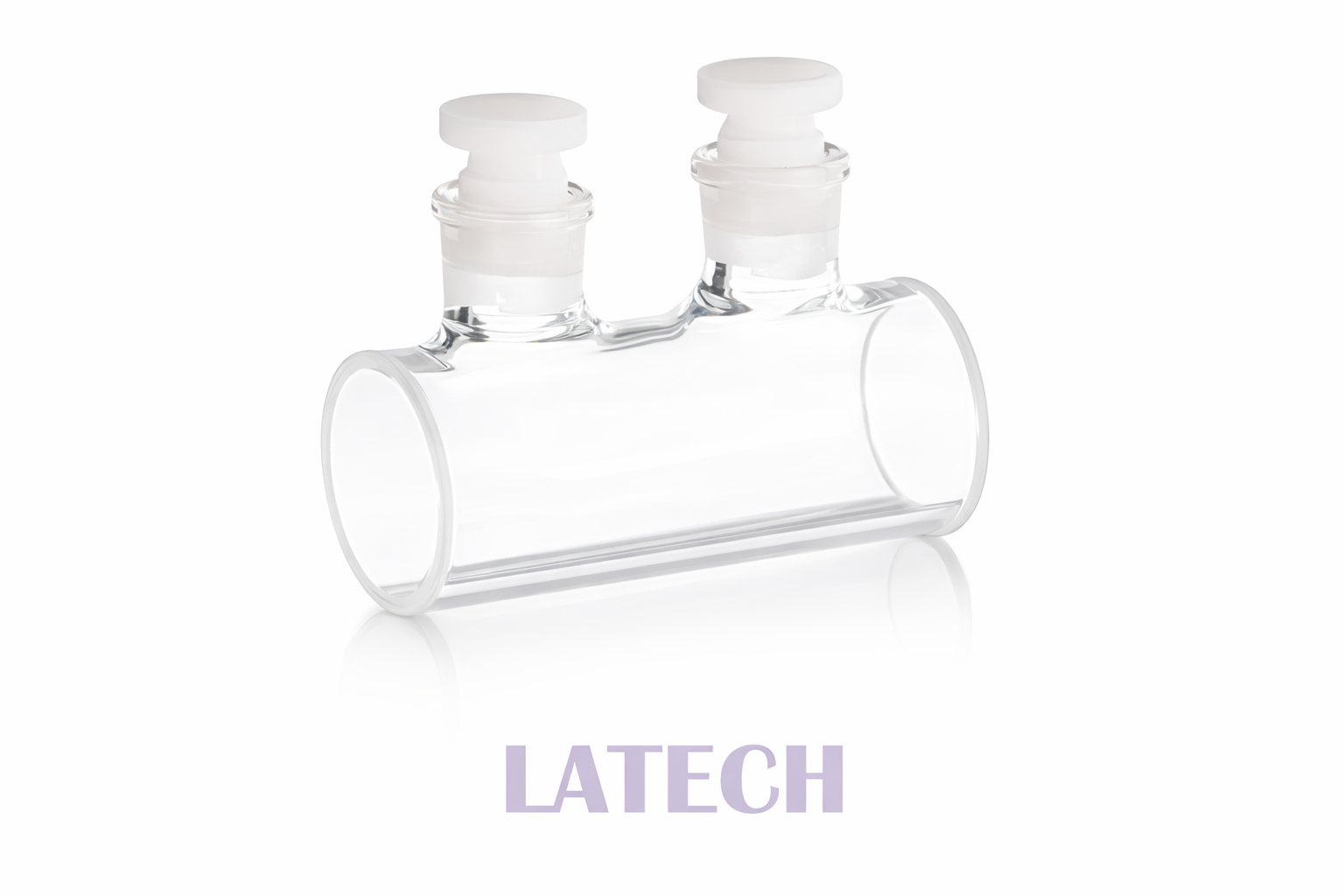

Cylindrical Quartz Cuvette (Standard Type)
Designed for UV-Vis and spectroscopic measurements, featuring a cylindrical geometry for uniform optical interaction.
Description
Description
This cylindrical cuvette is designed for spectroscopic measurements, providing a simple and reliable solution for liquid sample analysis.
Compared to traditional square cuvettes, the cylindrical design offers:
- Uniform optical interaction
- Reduced alignment sensitivity
- Compatibility with specific instrument setups
Cuvettes are commonly used to hold liquid samples for light-based measurements such as absorbance and transmission
Applications
- UV-Vis spectroscopy
- General liquid sample analysis
- Chemical and material testing
- Laboratory routine measurements
Key Features
- Cylindrical shape for uniform measurement
- Suitable for transmission-based analysis
- Simple and robust design
- Compatible with various spectroscopic systems
Specifications
Available in various dimensions and volumes to suit different experimental requirements.
|
Outside Dimension (mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| Ø 22 × 12.5 | 10 | Ø 19 | 2.8 | Q-85 | I-85 | G-85 |
| Ø 22 × 22.5 | 20 | Ø 19 | 5.7 | Q-86 | I-86 | G-86 |
| Ø 22 × 52.5 | 50 | Ø 19 | 14.0 | Q-87 | I-87 | G-87 |
| Ø 22 × 102.5 | 100 | Ø 19 | 28.0 | Q-88 | I-88 | G-88 |
