Standard UV-Vis Cuvette with PTFE Lid
Standard cuvettes for UV-Vis spectrophotometry with two optical clear walls for accurate absorbance measurements
Description
Cuvette Selection Guide
Description
Standard UV-Vis cuvettes are designed for routine absorbance measurements in spectrophotometry.
Featuring two optical clear walls, they provide reliable light transmission and precise analytical results.
Available in quartz and optical glass materials, they are suitable for a wide range of laboratory and research applications.
Key Features
- Two optical clear walls for accurate light transmission
- Ideal for UV-Vis absorbance measurements
- Frosted side walls for easy handling
- Available in quartz and optical glass
- Multiple path lengths and volumes available
- Compatible with most UV-Vis spectrophotometers
Applications
- Routine UV-Vis analysis
- Chemical and biological sample testing
- Concentration and absorbance measurements
- General laboratory research
- Quality control applications
Fused Cells – for All Type of Solvents
The quartz/glass walls of the cells are fused together at high temperature and are suitable for usage in all type of solvents.
|
Outside Dimension (mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| 45 × 12.5 × 3.5 | 1 | 10 | 0.35 | 1-Q-1 | 1-I-1 | 1-G-1 |
| 45 × 12.5 × 4.5 | 2 | 10 | 0.7 | 1-Q-2 | 1-I-2 | 1-G-2 |
| 45 × 12.5 × 7.5 | 5 | 10 | 1.7 | 1-Q-5 | 1-I-5 | 1-G-5 |
| 45 × 12.5 × 12.5 | 10 | 10 | 3.5 | 1-Q-10 | 1-I-10 | 1-G-10 |
| 45 × 12.5 × 22.5 | 20 | 10 | 7.0 | 1-Q-20 | 1-I-20 | 1-G-20 |
| 45 × 12.5 × 32.5 | 30 | 10 | 10.5 | 1-Q-30 | 1-I-30 | 1-G-30 |
| 45 × 12.5 × 42.5 | 40 | 10 | 14.0 | 1-Q-40 | 1-I-40 | 1-G-40 |
| 45 × 12.5 × 52.5 | 50 | 10 | 17.5 | 1-Q-50 | 1-I-50 | 1-G-50 |
| 45 × 12.5 × 102.5 | 100 | 10 | 35.0 | 1-Q-100 | 1-I-100 | 1-G-100 |
Glued Cells – for Aqueous (Water-Based) Solvents Only
The quartz/glass walls of the cells are glued together and are recommended for usage in aqueous solvents only.
|
Outside Dimension (mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| 45 × 12.5 × 3.5 | 1 | 10 | 0.35 | Q-101 | I-101 | G-101 |
| 45 × 12.5 × 4.5 | 2 | 10 | 0.7 | Q-102 | I-102 | G-102 |
| 45 × 12.5 × 7.5 | 5 | 10 | 1.7 | Q-103 | I-103 | G-103 |
| 45 × 12.5 × 12.5 | 10 | 10 | 3.5 | Q-104 | I-104 | G-104 |
| 45 × 12.5 × 22.5 | 20 | 10 | 7.0 | Q-105 | I-105 | G-105 |
| 45 × 12.5 × 32.5 | 30 | 10 | 10.5 | Q-106 | I-106 | G-106 |
| 45 × 12.5 × 42.5 | 40 | 10 | 14.0 | Q-107 | I-107 | G-107 |
| 45 × 12.5 × 52.5 | 50 | 10 | 17.5 | Q-108 | I-108 | G-108 |
| 45 × 12.5 × 102.5 | 100 | 10 | 35.0 | Q-109 | I-109 | G-109 |
How to Choose the Right Cuvette for Your Application
🧠 1. Select by Measurement Type
| Application | Recommended Cuvette |
|---|---|
| UV-Vis Absorbance | 2 Optical Windows (Standard Cuvette) |
| Fluorescence | 4 Optical Windows |
| Low signal / stray light sensitive | Black Wall Cuvette |
| Routine / high-throughput | Disposable Cuvette |
🌈 2. Select by Material (Critical for Wavelength Range)
| Material | Wavelength Range | Application |
|---|---|---|
| Quartz | 190 – 2500 nm | UV + Visible (recommended) |
| Optical Glass | 340 – 2500 nm | Visible only |
| IR Quartz | >2200 nm | Infrared |
👉 Important:
Quartz cuvettes are required for UV measurements below 340 nm.
🧪 3. Select by Sample Volume
| Type | Volume | Typical Use |
|---|---|---|
| Standard Cell | ~3.5 mL | General applications |
| Micro Cell | <1 mL | Limited or expensive samples |
| Flow Cell | Continuous | Online / process monitoring |
📏 4. Select by Path Length
| Path Length | Application |
|---|---|
| 10 mm | Standard measurements |
| 1–5 mm | High concentration samples |
| >10 mm | Low concentration detection |
🔒 5. Choose the Right Closure Type
| Type | Best For | Sealing Level |
|---|---|---|
| Lid | Routine testing | Low |
| Stopper | Volatile or sensitive samples | Medium |
| Screw Cap | Storage / long-term testing | High |
🧩 Quick Selection Guide
👉 Use this as a shortcut:
- Need UV measurement (<340 nm)? → Quartz cuvette
- Doing standard absorbance? → 2 optical windows
- Sample evaporates easily? → Stopper or screw cap
- Sample volume is small? → Micro cell
- Measuring fluorescence? → 4 optical windows
💡 Why Choose Our Cuvettes
- High optical clarity for accurate measurements
- Precision-polished optical windows
- Wide compatibility with major spectrophotometer brands
- Available in multiple materials, sizes, and configurations
- Custom designs available upon request
📩 Need Help Selecting?
Not sure which cuvette fits your application?
Contact us with your wavelength range, sample type, and instrument model — our team will recommend the most suitable option.
Related Products

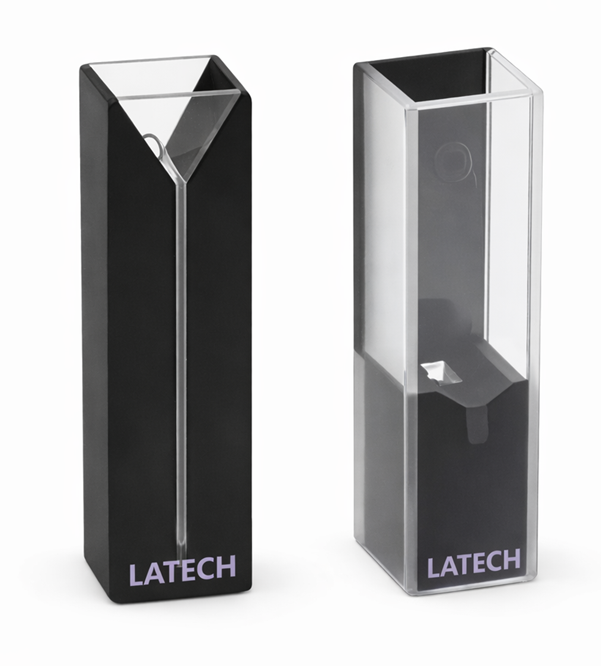

Micro Black Wall Cuvette with PTFE Stopper
Black-Wall Cell
Cuvettes
Low-volume cuvette with black walls for reduced stray light and improved measurement accuracy

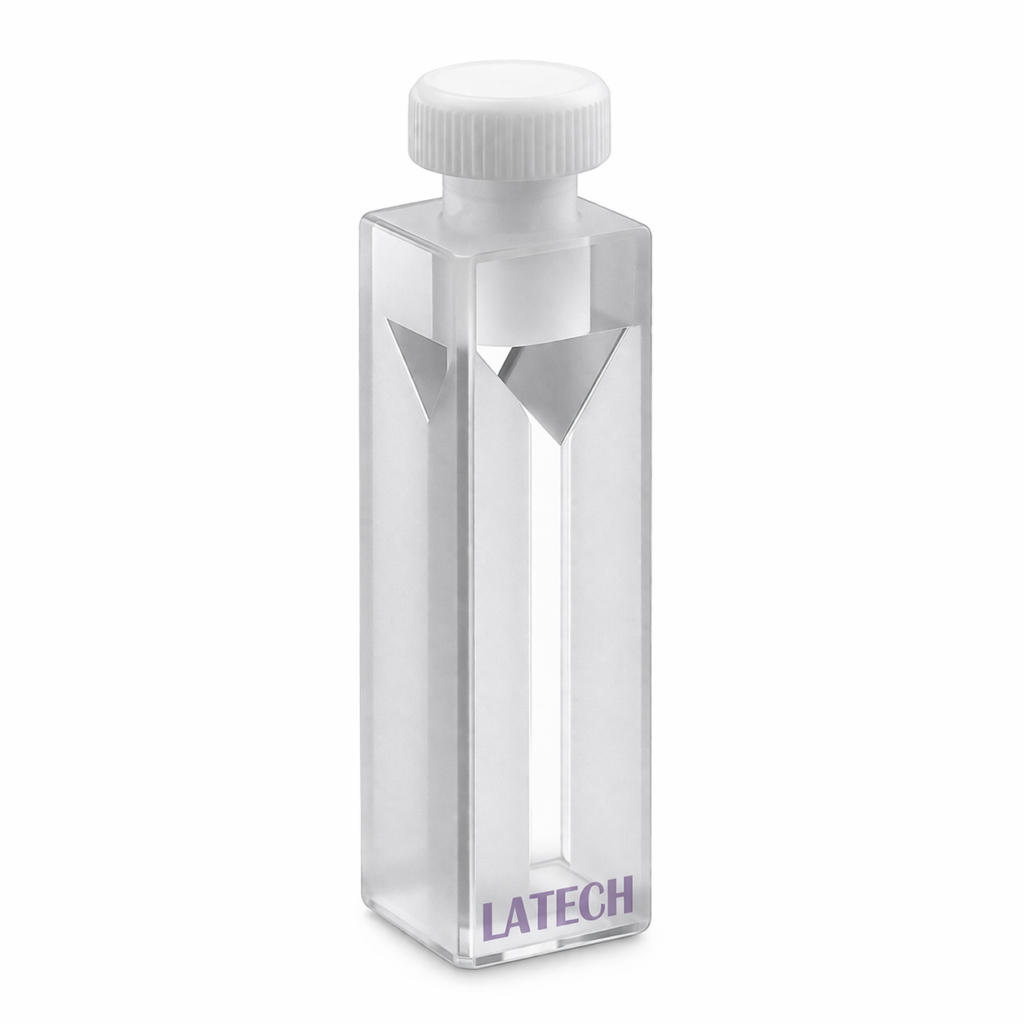

Micro UV-Vis Cuvette with PTFE Stopper
UV-Vis Cuvettes (2 Optical Windows）
Cuvettes
Low-volume cuvette for precious or limited samples in UV-Vis spectrophotometry

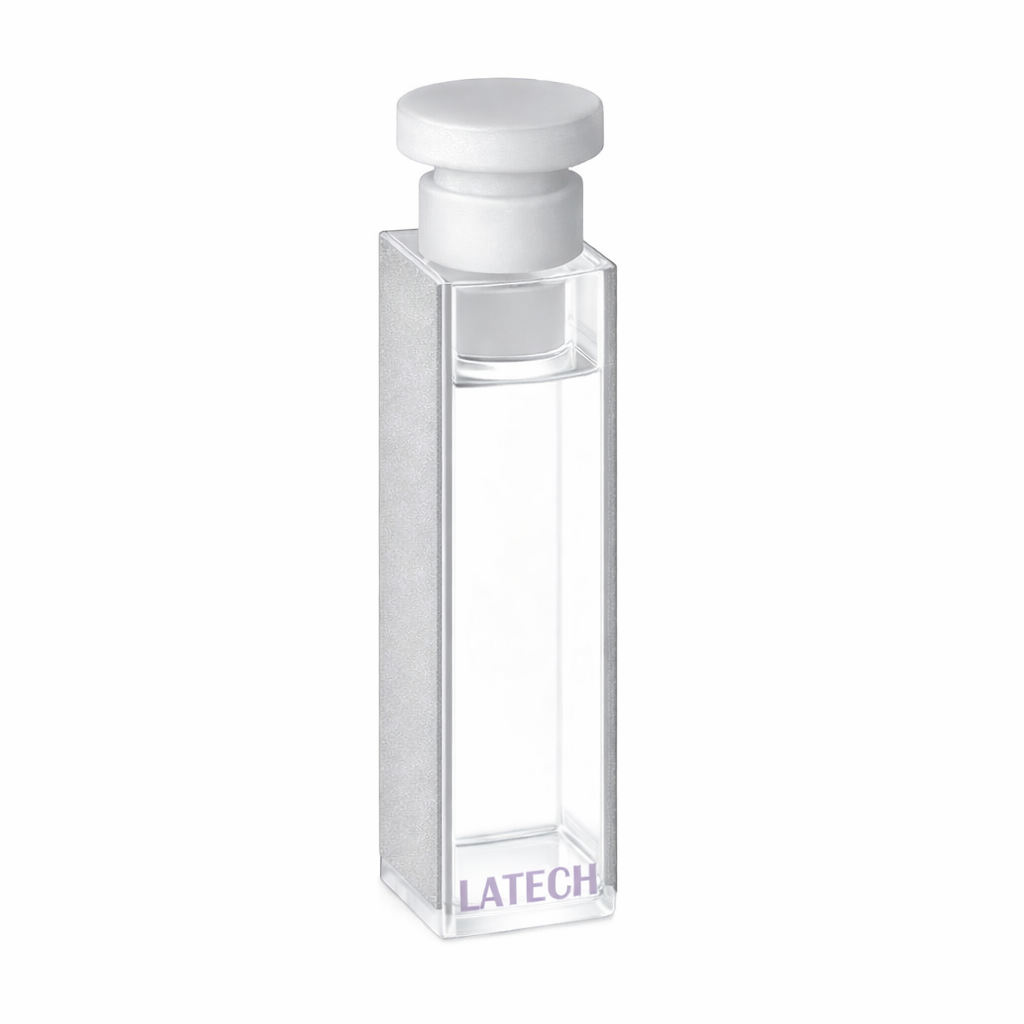

Standard UV-Vis Cuvette with PTFE Stopper
UV-Vis Cuvettes (2 Optical Windows）
Cuvettes
Sealed cuvette for volatile or sensitive samples in UV-Vis spectrophotometry
Disposable Plastic Cuvettes (UV-Vis)
Disposable Cell
Cuvettes
Cost-effective cuvettes for routine measurements with no cleaning required

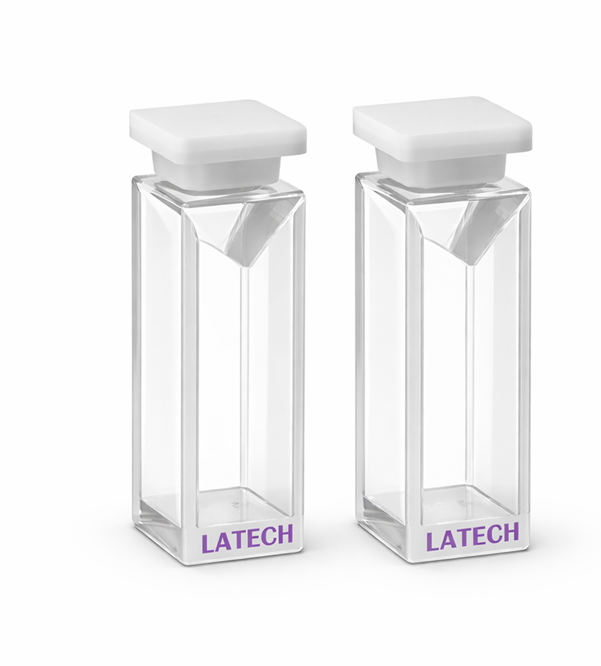

Micro Fluorescence Cuvette with Lid
