Fluorescence Cuvette with PTFE Stopper
Sealed cuvette for accurate fluorescence measurements with four optical windows
Description
Description
These fluorescence cuvettes are designed for fluorometry applications and feature four optical clear walls for multi-directional light transmission.
Fluorescence measurements require detection at a 90° angle to the excitation light, making four optical windows essential for accurate results.
Equipped with a PTFE stopper, these cuvettes provide effective sealing, making them ideal for volatile, sensitive, or air-reactive samples.
Available in quartz and optical glass materials, suitable for UV and visible wavelength applications.
Key Features
- Four optical clear walls for fluorescence detection
- Designed for 90° emission measurement geometry
- PTFE stopper for improved sealing performance
- Suitable for volatile and air-sensitive samples
- High optical clarity for accurate fluorescence results
- Compatible with most fluorometers
- Available in quartz and optical glass
When should you choose a fluorescence cuvette with stopper?
- For fluorescence spectroscopy measurements
- When emission is detected at 90° to excitation light
- When working with volatile or sensitive samples
- When sealing is required to prevent evaporation or contamination
Fused Cells – for All Type of Solvents
The quartz/glass walls of the cells are fused together at high temperature and are suitable for usage in all type of solvents.
|
Outside Dimension (mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| 45 × 12.5 × 7.5 | 5 | 10 | 1.7 | 23-Q-5 | 23-I-5 | 23-G-5 |
| 45 × 12.5 × 12.5 | 10 | 10 | 3.5 | 23-Q-10 | 23-I-10 | 23-G-10 |
| 45 × 12.5 × 22.5 | 20 | 10 | 7.0 | 23-Q-20 | 23-I-20 | 23-G-20 |
| 45 × 12.5 × 32.5 | 30 | 10 | 10.5 | 23-Q-30 | 23-I-30 | 23-G-30 |
| 45 × 12.5 × 42.5 | 40 | 10 | 14.0 | 23-Q-40 | 23-I-40 | 23-G-40 |
| 45 × 12.5 × 52.5 | 50 | 10 | 17.5 | 23-Q-50 | 23-I-50 | 23-G-50 |
Glued Cells – for Aqueous (Water-Based) Solvents Only
The quartz/glass walls of the cells are glued together and are recommended for usage in aqueous solvents only.
|
Outside Dimension (mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| 45 × 12.5 × 7.5 | 5 | 10 | 1.7 | Q-213 | I-213 | G-213 |
| 45 × 12.5 × 12.5 | 10 | 10 | 3.5 | Q-214 | I-214 | G-214 |
| 45 × 12.5 × 22.5 | 20 | 10 | 7.0 | Q-215 | I-215 | G-215 |
| 45 × 12.5 × 32.5 | 30 | 10 | 10.5 | Q-216 | I-216 | G-216 |
| 45 × 12.5 × 42.5 | 40 | 10 | 14.0 | Q-217 | I-217 | G-217 |
| 45 × 12.5 × 52.5 | 50 | 10 | 17.5 | Q-218 | I-218 | G-218 |
| 45 × 12.5 × 102.5 | 100 | 10 | 35.0 | Q-219 | I-219 | G-219 |
Related Products

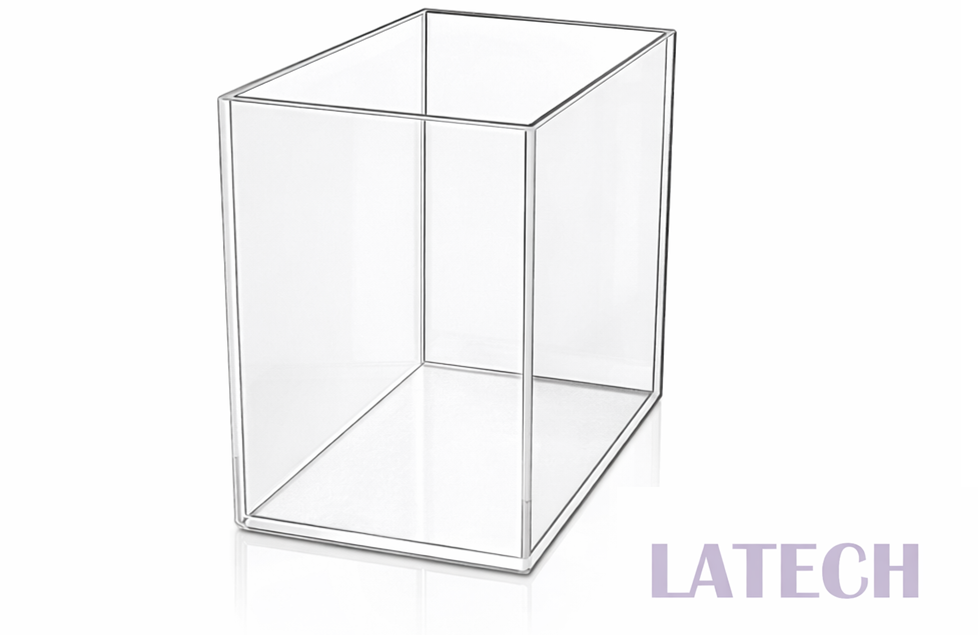

Absorptionmeter Rectangular Cuvettes
Special Cell
Cuvettes
Designed for high-sensitivity absorption measurements, featuring extended path lengths up to 200 mm for low-concentration sample analysis.

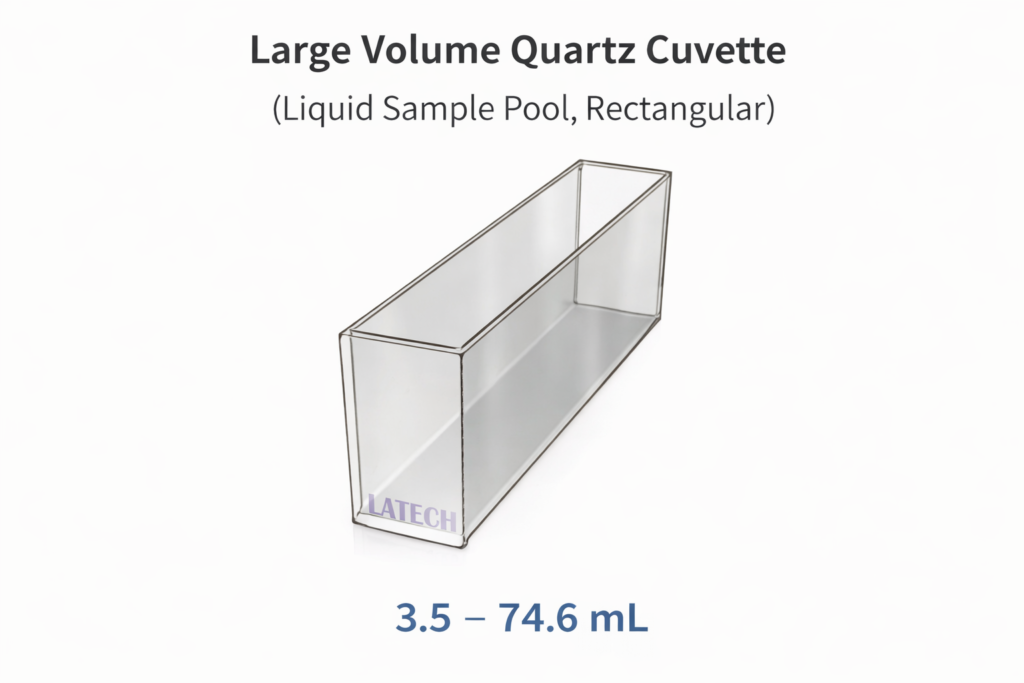

Large Volume Quartz Cuvette (Liquid Sample Pool, Rectangular)
Special Cell
Cuvettes
Designed for large-volume liquid analysis (3.5–74.6 mL) where standard cuvettes are not suitable. Ideal for applications requiring higher sample volume or non-standard testing conditions.

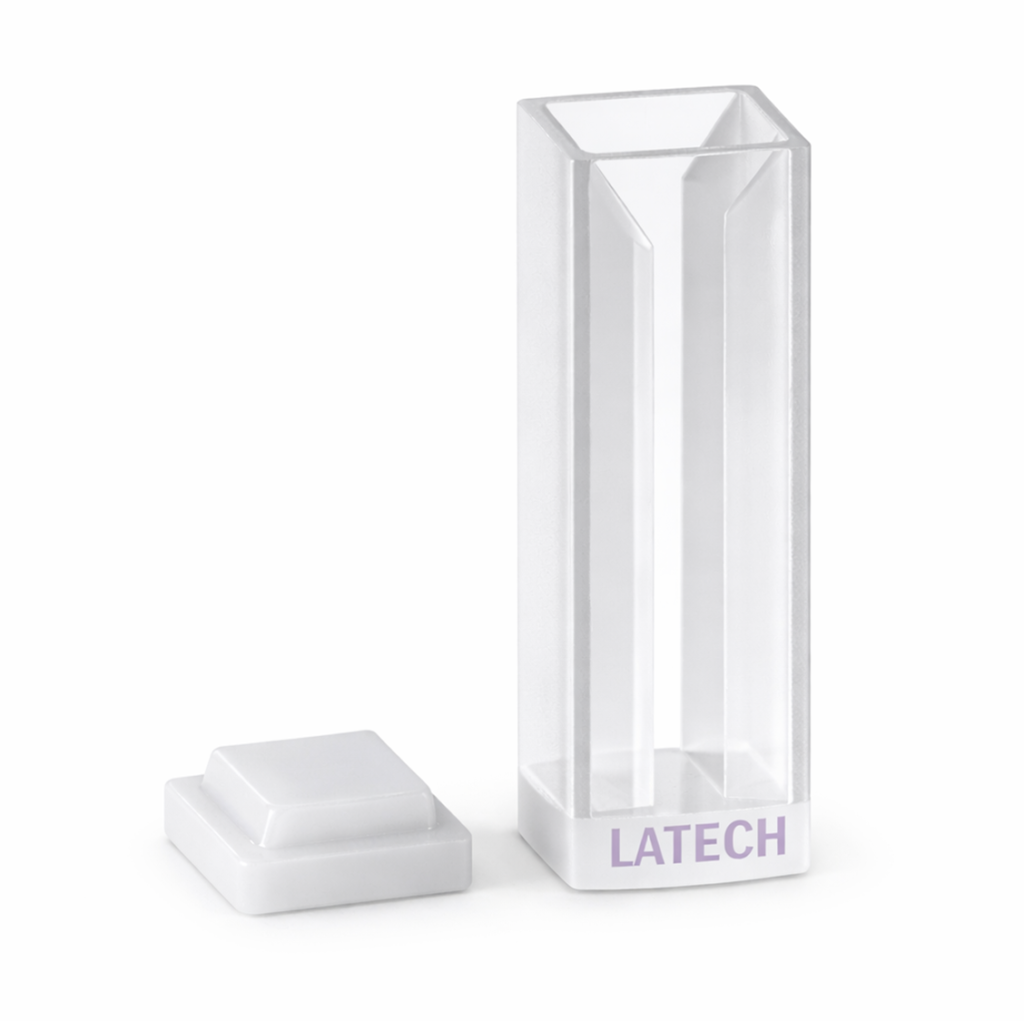

Micro UV-Vis Cuvette with Lid (2 Optical Windows)
UV-Vis Cuvettes (2 Optical Windows）
Cuvettes
Convenient low-volume cuvette for routine UV-Vis measurements

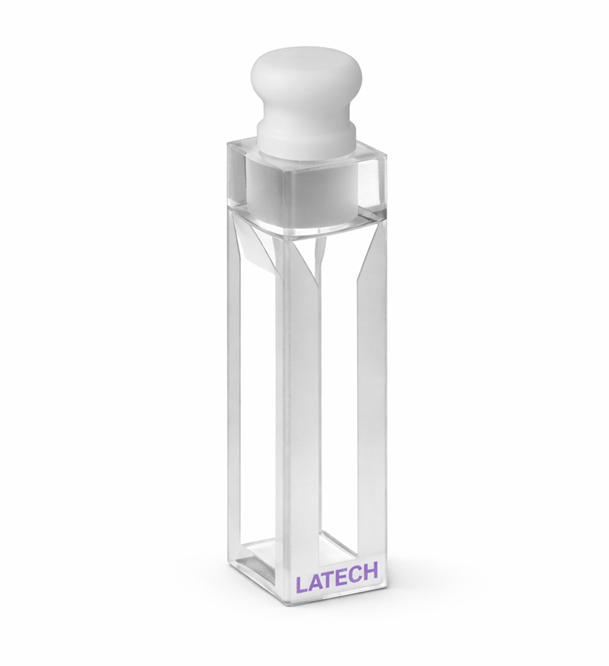

Micro Fluorescence Cuvette with PTFE Stopper
Fluorescence Cuvettes (4 Optical Windows)
Cuvettes
Sealed low-volume cuvette for fluorescence measurements of sensitive samples

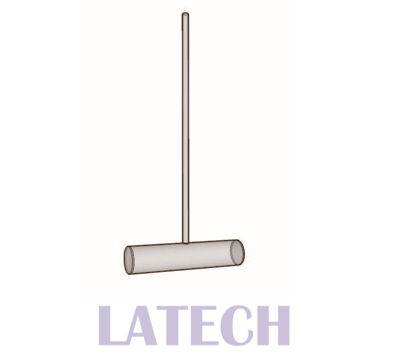

Cylindrical Quartz Cuvette with Long Outlet (Flow / Injection Type)
