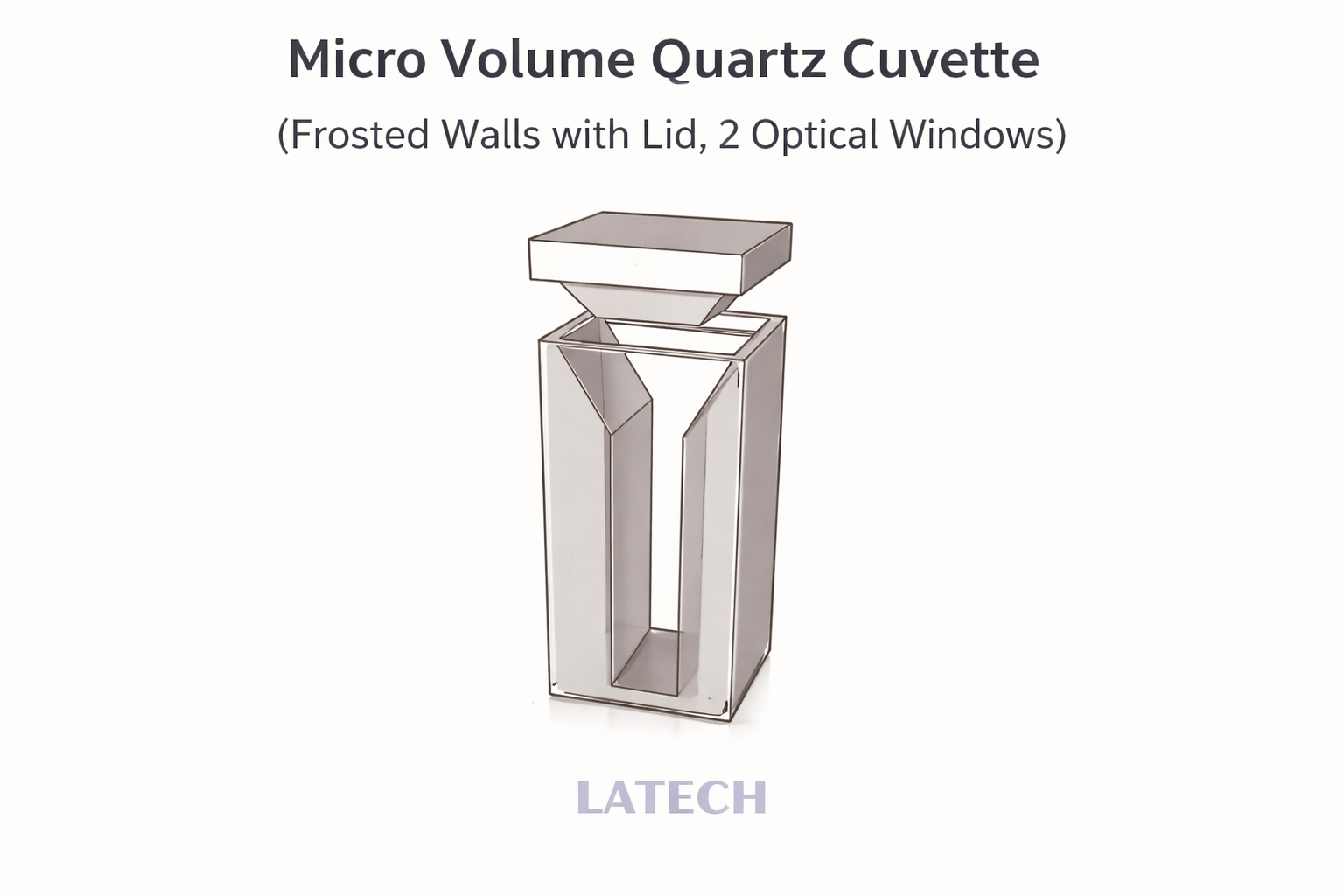

Micro Volume Quartz Cuvette (Frosted Walls with Lid, 2 Optical Windows)
Designed for micro-volume UV-Vis measurements (0.15–0.60 mL) with improved light control using frosted walls and a secure lid to minimize evaporation.
Description
Description
This micro-volume cuvette features two clear optical windows and two frosted walls, designed to improve measurement stability by reducing stray light and unwanted reflections.
Compared to standard cuvettes, this design:
- Enhances signal quality by minimizing light scattering
- Improves measurement consistency
- Reduces background interference
The included lid helps:
- Minimize evaporation for small-volume samples
- Protect sensitive or volatile samples
- Enable more stable measurements
Applications
- UV-Vis spectroscopy with limited sample volume
- Biological and chemical sample analysis
- Protein / DNA measurements (low volume)
- Sensitive or volatile liquid testing
Key Features
- Two clear optical windows for transmission measurements
- Frosted walls to reduce stray light and improve signal stability
- Micro-volume design (0.15–0.60 mL)
- Lid for evaporation control and sample protection
Available Materials
- Quartz (190–2500 nm)
- IR Quartz (250–3500 nm)
- Optical Glass (340–2500 nm)
Specifications
|
Outside Dimension (mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| 25 × 12.5 × 12.5 | 10 | 1 | 0.15 | Q-464 | I-464 | G-464 |
| 25 × 12.5 × 12.5 | 10 | 2 | 0.3 | Q-474 | I-474 | G-474 |
| 25 × 12.5 × 12.5 | 10 | 3 | 0.45 | Q-484 | I-484 | G-484 |
| 25 × 12.5 × 12.5 | 10 | 4 | 0.60 | Q-494 | I-494 | G-494 |
Comparison with Other Micro Cuvettes
- Standard micro cuvette: higher stray light, less stable signal
- Black-wall cuvette: blocks light completely (for fluorescence)
- Frosted-wall cuvette : balances light control + transmission measurement
