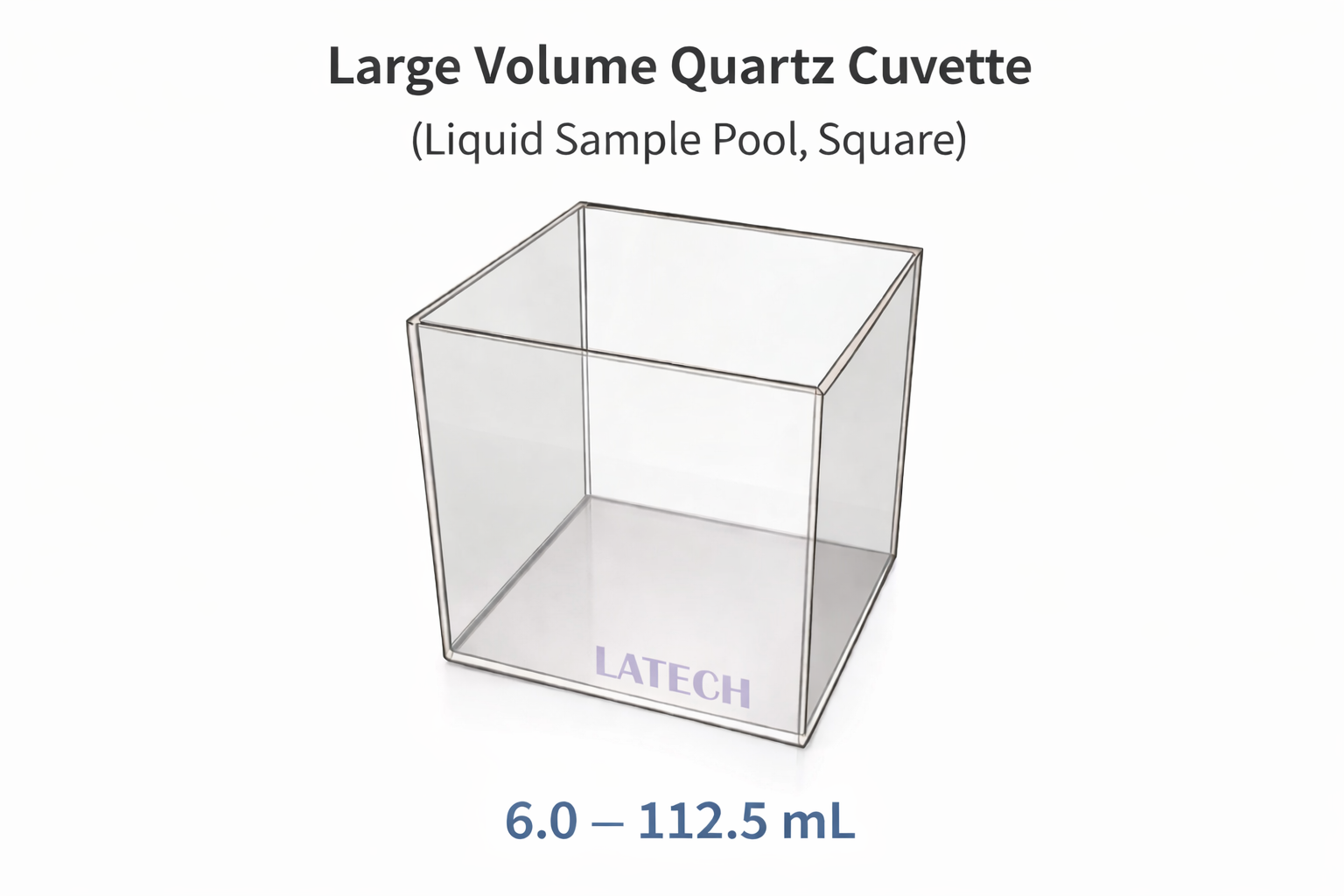

Large Volume Quartz Cuvette (Liquid Sample Pool, Square)
Designed for large-volume liquid analysis (6.0 – 112.5 mL) where standard cuvettes are not suitable. Ideal for applications requiring higher sample volume or non-standard testing conditions.
Description
Description
This square liquid sample pool is designed for large-volume spectroscopic measurements, providing a practical alternative to standard cuvettes (typically 1–3 mL).
It is especially suitable for samples that are:
- Large in volume
- Viscous or non-uniform
- Difficult to handle using conventional cuvettes
The open design allows easy sample loading and is ideal for manual testing and reaction monitoring.
Applications
- UV-Vis spectroscopy with large sample volumes
- Chemical reaction monitoring
- Materials and electrochemical studies
- Viscous or heterogeneous liquid analysis
Available Materials
- Quartz (190–2500 nm, suitable for UV applications)
- IR Quartz (250–3500 nm)
- Optical Glass (340–2500 nm, cost-effective for visible range)
Specifications
Available in multiple sizes with path lengths from 20 mm to 50 mm and volumes ranging from 6.0 mL to 112.5 mL.
|
Outside Dimension (mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| 22.5 × 25 × 25 | 20 | 20 | 6.0 | Q-751 | I-751 | G-751 |
| 32.5 × 35 × 35 | 30 | 30 | 22.5 | Q-752 | I-752 | G-752 |
| 42.5 × 45 × 45 | 40 | 40 | 56.0 | Q-753 | I-753 | G-753 |
| 52.5 × 55 × 55 | 50 | 50 | 112.5 | Q-754 | I-754 | G-754 |
Comparison with Standard Cuvettes
Standard cuvettes typically hold only a few milliliters of sample, while this design supports significantly larger volumes, making it suitable for specialized or research-level applications.
