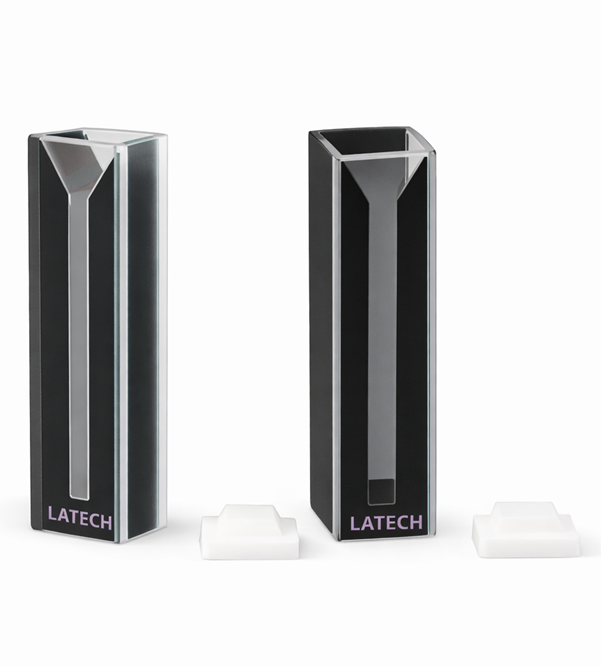

Micro Black Wall Cuvette with PTFE Stopper
Low-volume cuvette with black walls for reduced stray light and improved measurement accuracy
Description
Description
These micro cuvettes are designed for UV-Vis spectrophotometry and feature two optical clear walls for accurate absorbance measurements.
The black wall design minimizes stray light and reduces optical interference, improving measurement accuracy, especially for low-signal or high-sensitivity applications.
With reduced sample volume, they are ideal for precious or limited samples.
Equipped with a PTFE stopper, these cuvettes provide effective sealing for volatile or air-sensitive samples.
Available in quartz and optical glass materials, supporting a wide wavelength range from UV to visible applications.
Key Features
- Black walls to minimize stray light and improve signal accuracy
- Two optical clear windows for precise light transmission
- Low sample volume for reduced sample consumption
- PTFE stopper for sealing and reduced evaporation
- Ideal for low-concentration or high-sensitivity measurements
- Compatible with most UV-Vis spectrophotometers
- Available in quartz and optical glass
When should you choose a black wall cuvette?
- When measuring low-concentration samples
- When stray light may affect accuracy
- For high-sensitivity UV-Vis measurements
- When improved signal-to-noise ratio is required
- When working with limited or expensive samples
Fused Cells – for All Type of Solvents
The quartz/glass walls of the cells are fused together at high temperature and are suitable for usage in all type of solvents.
|
Outside Dimension (mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| 45 × 12.5 × 7.5 | 5 | 2 | 0.35 | 30B-Q-5 | 30B-I-5 | 30B-G-5 |
| 45 × 12.5 × 12.5 | 10 | 2 | 0.7 | 30B-Q-10 | 30B-I-10 | 30B-G-10 |
| 45 × 12.5 × 22.5 | 20 | 2 | 1.4 | 30B-Q-20 | 30B-I-20 | 30B-G-20 |
| 45 × 12.5 × 32.5 | 30 | 2 | 2.1 | 30B-Q-30 | 30B-I-30 | 30B-G-30 |
| 45 × 12.5 × 42.5 | 40 | 2 | 2.8 | 30B-Q-40 | 30B-I-40 | 30B-G-40 |
| 45 × 12.5 × 52.5 | 50 | 2 | 3.5 | 30B-Q-50 | 30B-I-50 | 30B-G-50 |
| 45 × 12.5 × 7.5 | 5 | 4 | 0.7 | 29B-Q-5 | 29B-I-5 | 29B-G-5 |
| 45 × 12.5 × 12.5 | 10 | 4 | 1.4 | 29B-Q-10 | 29B-I-10 | 29B-G-10 |
| 45 × 12.5 × 22.5 | 20 | 4 | 2.8 | 29B-Q-20 | 29B-I-20 | 29B-G-20 |
| 45 × 12.5 × 32.5 | 30 | 4 | 4.2 | 29B-Q-30 | 29B-I-30 | 29B-G-30 |
| 45 × 12.5 × 42.5 | 40 | 4 | 5.6 | 29B-Q-40 | 29B-I-40 | 29B-G-40 |
| 45 × 12.5 × 52.5 | 50 | 4 | 7.0 | 29B-Q-50 | 29B-I-50 | 29B-G-50 |
Glued Cells – for Aqueous (Water-Based) Solvents Only
The quartz/glass walls of the cells are glued together and are recommended for usage in aqueous solvents only.
|
Outside Dimension (mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| 45 × 12.5 × 7.5 | 5 | 2 | 0.35 | Q-53 | I-53 | G-53 |
| 45 × 12.5 × 12.5 | 10 | 2 | 0.7 | Q-54 | I-54 | G-54 |
| 45 × 12.5 × 22.5 | 20 | 2 | 1.4 | Q-55 | I-55 | G-55 |
| 45 × 12.5 × 32.5 | 30 | 2 | 2.1 | Q-56 | I-56 | G-56 |
| 45 × 12.5 × 42.5 | 40 | 2 | 2.8 | Q-57 | I-57 | G-57 |
| 45 × 12.5 × 52.5 | 50 | 2 | 3.5 | Q-58 | I-58 | G-58 |
| 45 × 12.5 × 102.5 | 100 | 2 | 7 | Q-59 | I-59 | G-59 |
| 45 × 12.5 × 7.5 | 5 | 4 | 0.7 | Q-33 | I-33 | G-33 |
| 45 × 12.5 × 12.5 | 10 | 4 | 1.4 | Q-34 | I-34 | G-34 |
| 45 × 12.5 × 22.5 | 20 | 4 | 2.8 | Q-35 | I-35 | G-35 |
| 45 × 12.5 × 32.5 | 30 | 4 | 4.2 | Q-36 | I-36 | G-36 |
| 45 × 12.5 × 42.5 | 40 | 4 | 5.6 | Q-37 | I-37 | G-37 |
| 45 × 12.5 × 52.5 | 50 | 4 | 7.0 | Q-38 | I-38 | G-38 |
| 45 × 12.5 × 102.5 | 100 | 4 | 14.0 | Q-39 | I-39 | G-39 |
