Description

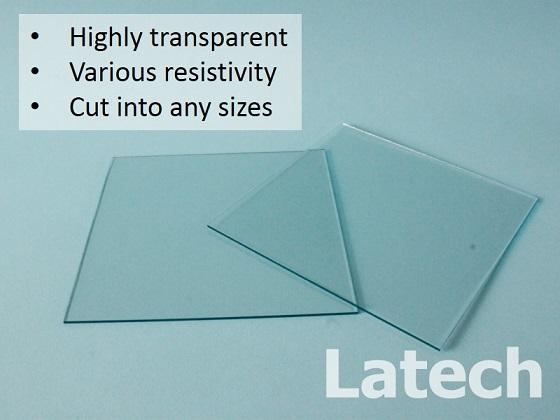

| Product: | ITO conductive glass / transparent conductive oxide (TCO) substrate |
| Material: | Tin-doped indium oxide (Sn:In2O3), ITO film on glass |
| Appearance: | Highly transparent colorless glass |
| Glass Thickness: |
Standard Thickness • 1.1 mm Other Thicknesses • 0.5 mm • 0.55 mm • 0.7 mm • 1.8 mm |
| Glass Size: | Can cut into any sizes |
| Sheet Resistance: |
• Standard 10 – 100 Ω/sq (see Table below) • Other resistance ranges available |
| Temperature Range: | Recommended usage below 500 °C since glass may melt at higher temperature |
| Useful Links: | • What is ITO glass? • What is sheet resistance? • How to measure sheet resistance? |
Sheet Resistance vs Transmittance vs ITO Layer Thickness
|
Sheet Resistance (Ω/sq) |
Transmittance (%) |
ITO Layer Thickness (nm) |
| 10 | > 80% | 185 ± 15 |
| 15 | > 80% | 135 ± 15 |
| 20 | > 80% | 95 ± 10 |
| 30 | > 80% | 65 ± 10 |
| 40 | > 82% | 50 ± 10 |
| 50 | > 84% | 40 ± 5 |
| 60 | > 85% | 35 ± 5 |
| 80 | > 86% | 30 ± 5 |
| 100 | > 87% | 23 ± 5 |
*Note: Data measured for standard glass thickness of 1.1 mm and vary slightly with glass thicknesses.

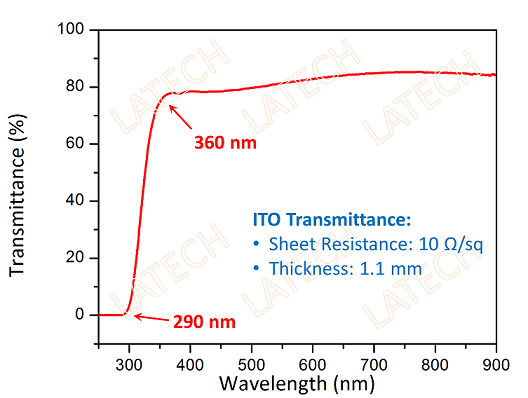

Transmittance Spectrum
