Ceramicware
Description
| Product: | Alumina / aluminium oxide (Al2O3) boat | |||
| Material: | Al2O3( > 99%) | |||
| Temperature range: | Up to 1800 oC , can work in <1600 oC continuously | |||
| Remarks: | Quenching resistant, excellent insulating behaviour, long-lasting. | |||
|
Available Sizes: |
Rectangular Shaped • 26 × 8 × 7 mm • 50 × 20 × 20 mm • 50 × 40 × 20 mm • 52 × 25 × 23 mm • 60 × 11 × 8 mm • 60 × 25 × 15 mm • 60 × 30 × 15 mm • 60 × 30 × 20 mm • 75 × 20 × 20 mm • 77 × 13 × 8 mm • 88 × 15 × 9 mm • 90 × 60 × 20 mm • 90 × 60 × 40 mm • 90 × 65 × 30 mm • 97 × 17 × 12 mm • 100 × 20 × 20 mm • 100 × 30 × 20 mm • 100 × 40 × 20 mm • 100 × 50 × 30 mm • 100 × 77 × 27 mm • 110 × 24 × 17 mm • 115 × 30 × 20 mm • 120 × 30 × 15 mm • 120 × 60 × 20 mm • 120 × 80 × 40 mm • 150 × 20 × 20 mm |
Rectangular with Hole • 40 × 10 × 7 mm • 44 × 11 × 8 mm • 73 × 30 × 22 mm • 77 × 13 × 8 mm • 88 × 15 × 9 mm • 97 × 17 × 12 mm • 100 × 24 × 17 mm • 100 × 27 × 27 mm • 100 × 43 × 26 mm • 100 × 56 × 35 mm • 100 × 84 × 35 mm |
Round Bottom • 38 × 34 × 18 mm • 60 × 54 × 24 mm • 65 × 25 × 16 mm • 100 × 20 × 20 mm • 100 × 30 × 20 mm • 100 × 40 × 20 mm • 100 × 40 × 25 mm • 100 × 50 × 30 mm • 250 × 40 × 18 mm |
|
Related Products

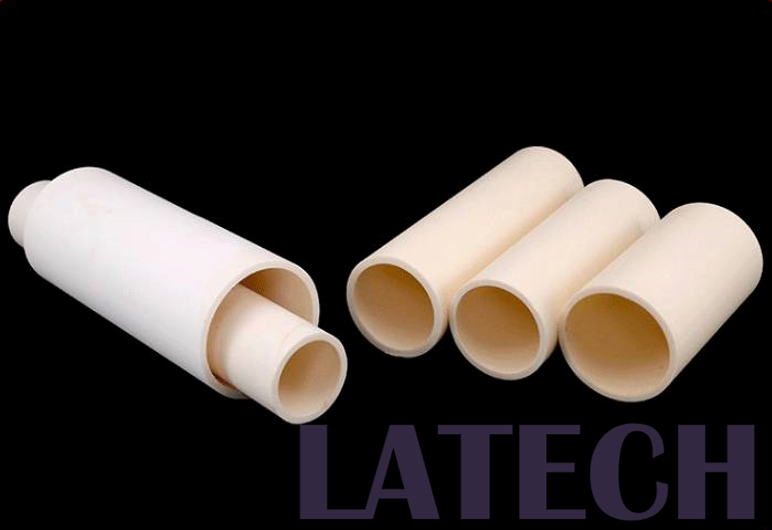

Al2O3 Tube
