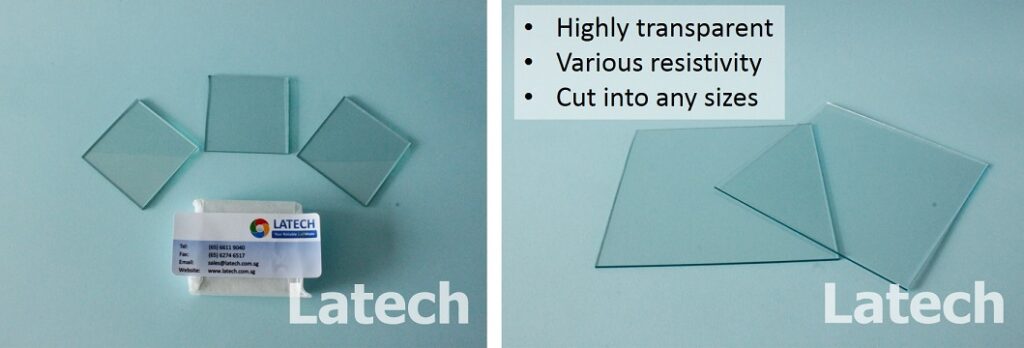

FTO Conductive Glass
Highly conductive and transparent FTO glass, now 1.1 / 2.2 / 3.3 mm thicknesses available, can cut into any sizes
Description
| Product: | FTO conductive glass / transparent conductive oxide (TCO) substrate |
| Material: | Fluorine (F)-doped tin oxide (SnO2), FTO conductive layer on glass |
| Glass Thickness: |
• 2.2 mm |
| Glass Sizes: | Can cut into any sizes |
| Sheet Resistance: |
• < 10 Ω/sq • < 15 Ω/sq |
| Transmittance: | > 80%, varied with glass thickness and sheet resistances |
| Temperature range: | Recommended usage below 500 °C since glass may melt at higher temperature |
| Useful Links: | • Commonly used transparent conducting films. • What is sheet resistance? • How to measure sheet resistance? |
