Description
|
SN |
Model Number |
Volume |
Remarks |
|
Standard H-type Cells |
CH2001, CH2001-S |
10-500 mL |
• CH2001: with PTFE lid (non-sealable) • CH2001-S: with PTFE screw cap • Porous sand core in the middle connection part (fixed type) |
|
Membrane-replaced H-type Cells |
CH2010, CH2010-S |
50-250 mL |
• CH2010: with PTFE lid (non-sealable) • CH2010-S: with PTFE screw cap • Two separable chambers, with exchangeable ion transport membranes |
|

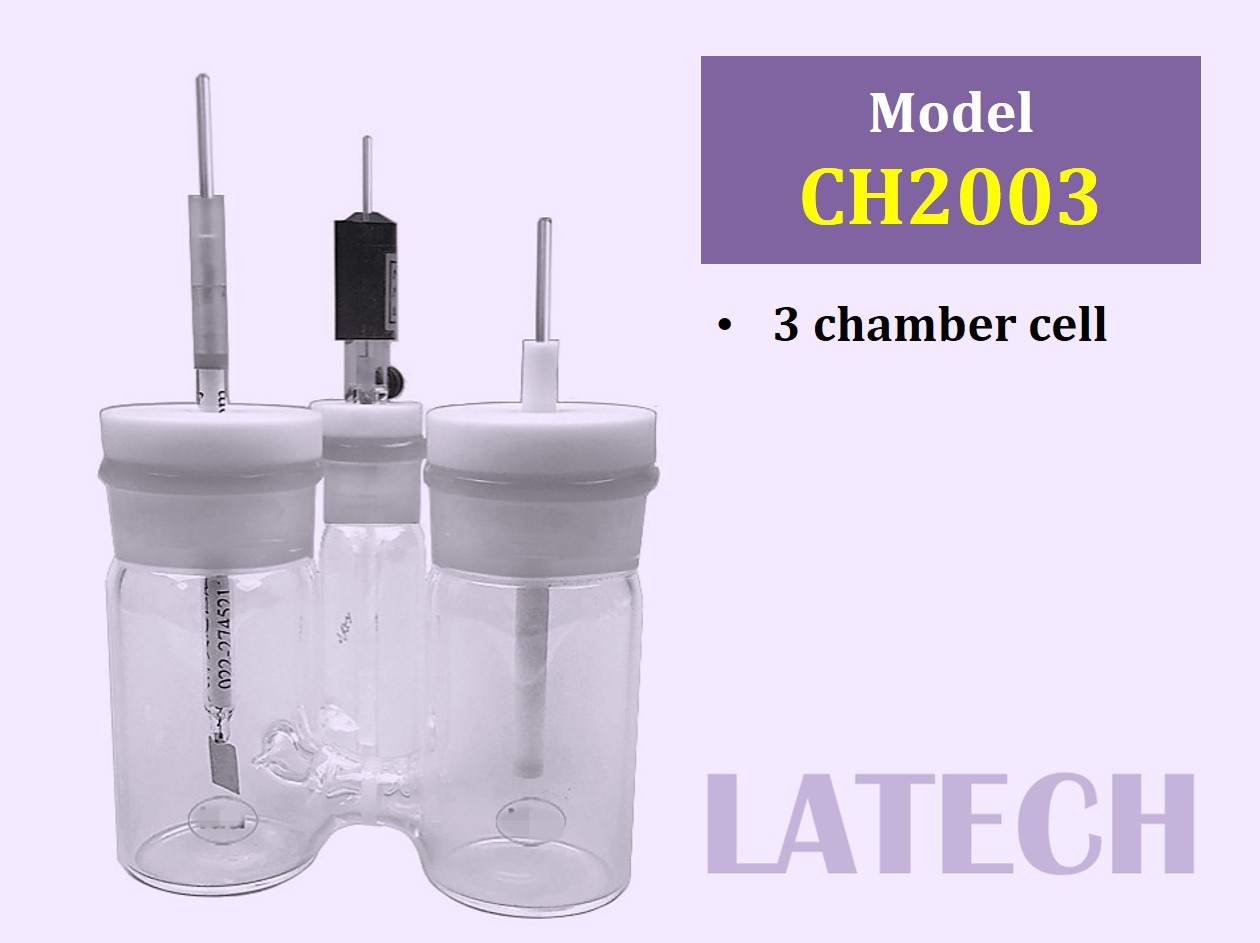

Three-Ports H-type Cells |
CH2003 |
10-150 mL |
• With PTFE stopper (good sealing capability) • Normal type, Luggin capillary + sintered glass separator, lid: rubber/Teflon |
|
CH2003-T |
10-150 mL |
• With Tee, gas inlet manual switch, Luggin capillary + sintered glass, lid: rubber/Teflon |
|
|
Water Bath H-type Cells |
CH2004, CH2004-S |
50-250 mL |
• CH2004: with PTFE lid (non-sealable) • CH2004-S: with PTFE screw cap • Porous sand core in the middle connection part (fixed type) • With water bath for reaction temperature control |
Remarks:
1. The electrode holes on the cell caps can be customized (hole number, position, size, etc).
