S/N

MODEL NUMBER

Remarks

1

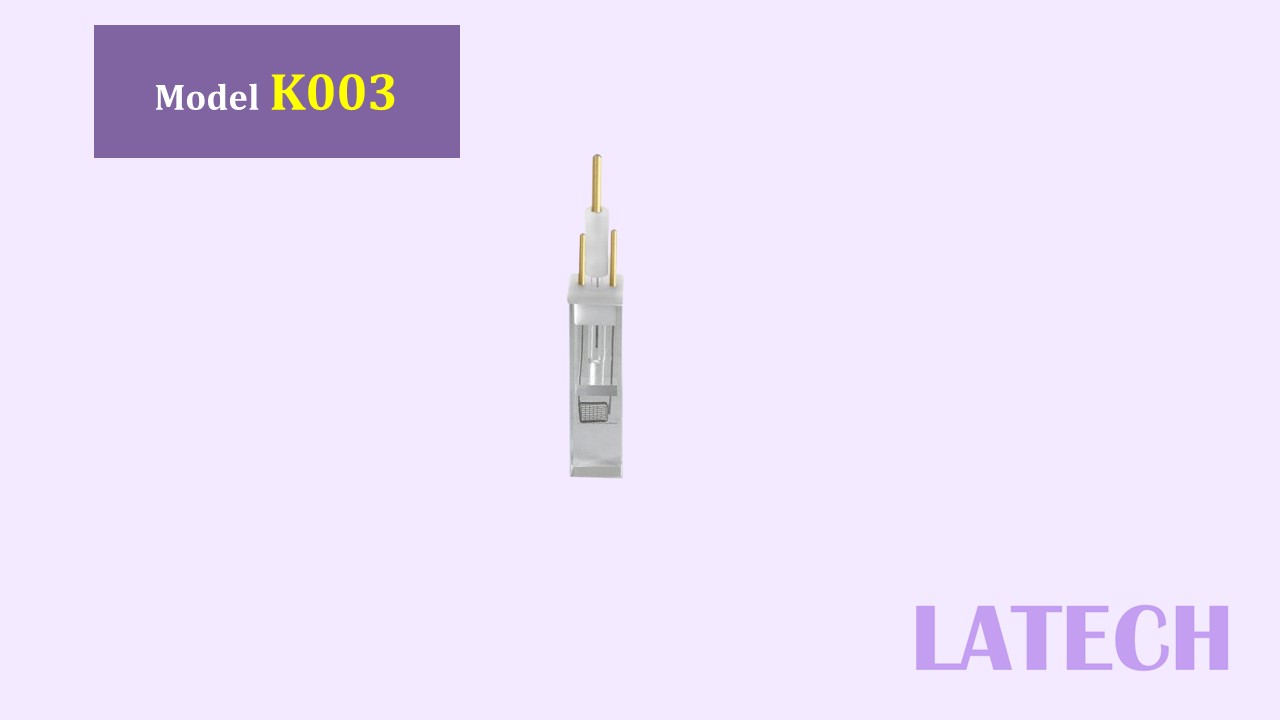

K003

• Spectroelectrochemical cell
• Full quartz construction
• PTFE lid
• Optical gap: 8 × 6.5 × 1 mm
• Three electrodes: Pt mesh, Pt wire, Ag/AgCl

2

K010-S

• Temperature-controllable photoelectric reactor
• Volume: 50 / 100 / 150 mL
• Glass cell body with quartz window (ϕ 24 mm)
• Three electrodes fully sealed

3

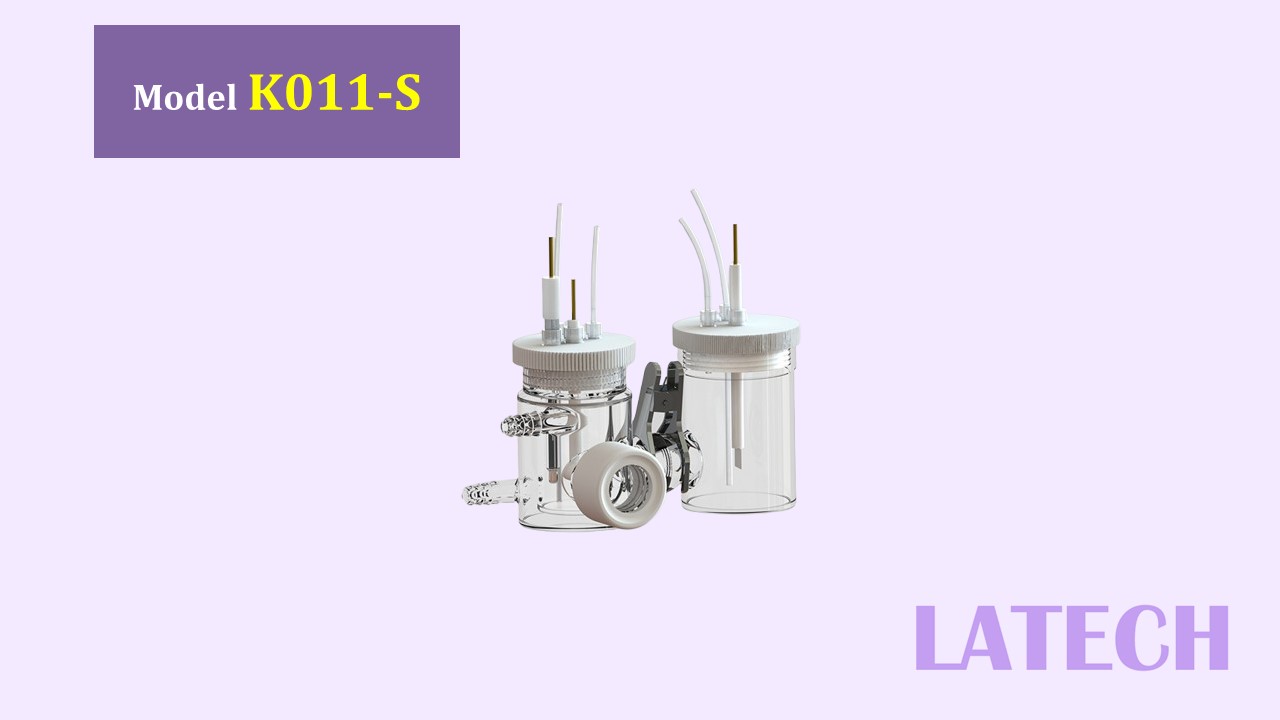

K011-S

• Temperature-controllable photoelectric reactor
• Volume: 50 / 100 / 150 mL
• Glass cell body with quartz window (ϕ 24 mm)
• Three electrodes fully sealed

4

K012-S

• H-type interchangeable film photoelectrochemical reactor
• Volume: 50 / 100 / 150 / 250 mL
• Glass cell body with quartz window (ϕ24 mm)
• Three electrodes sealed

5

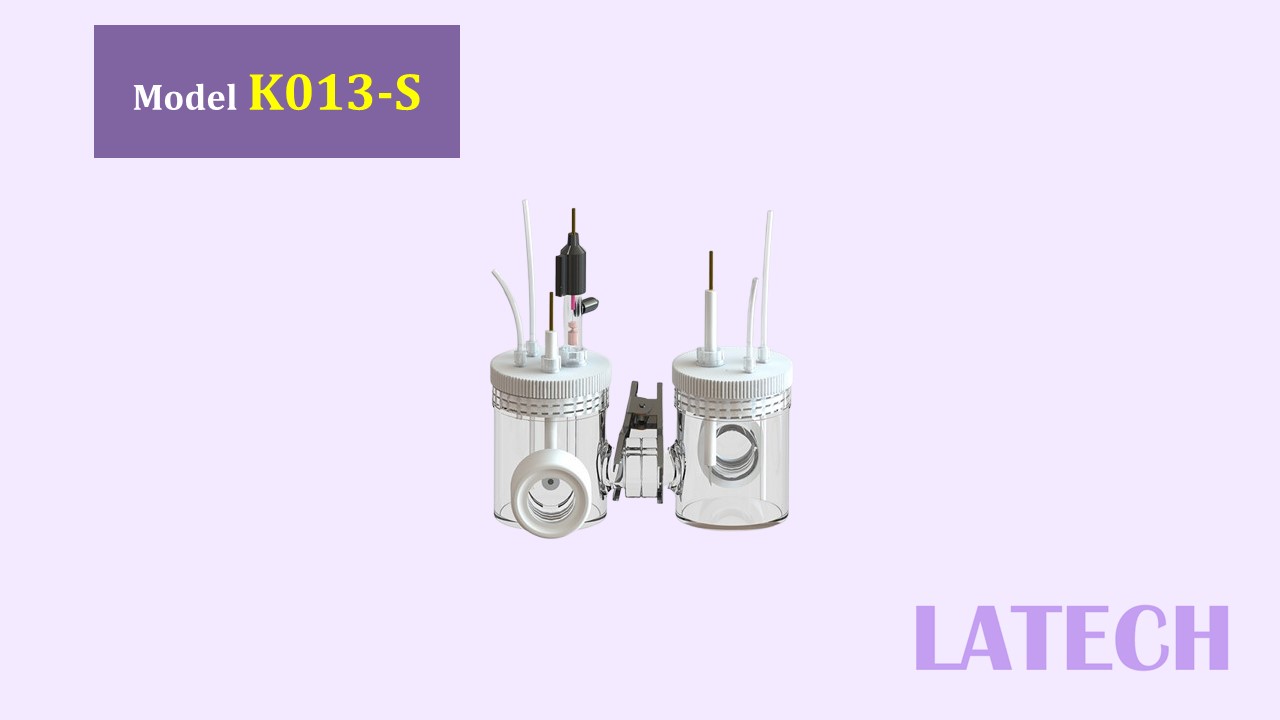

K013-S

• H-type dual-channel photoelectrochemical reactor with replaceable film
• Volume: 50 / 100 mL
• Glass cell body with quartz window (ϕ24 mm)
• Dual optical channels
• Three electrodes sealed

6

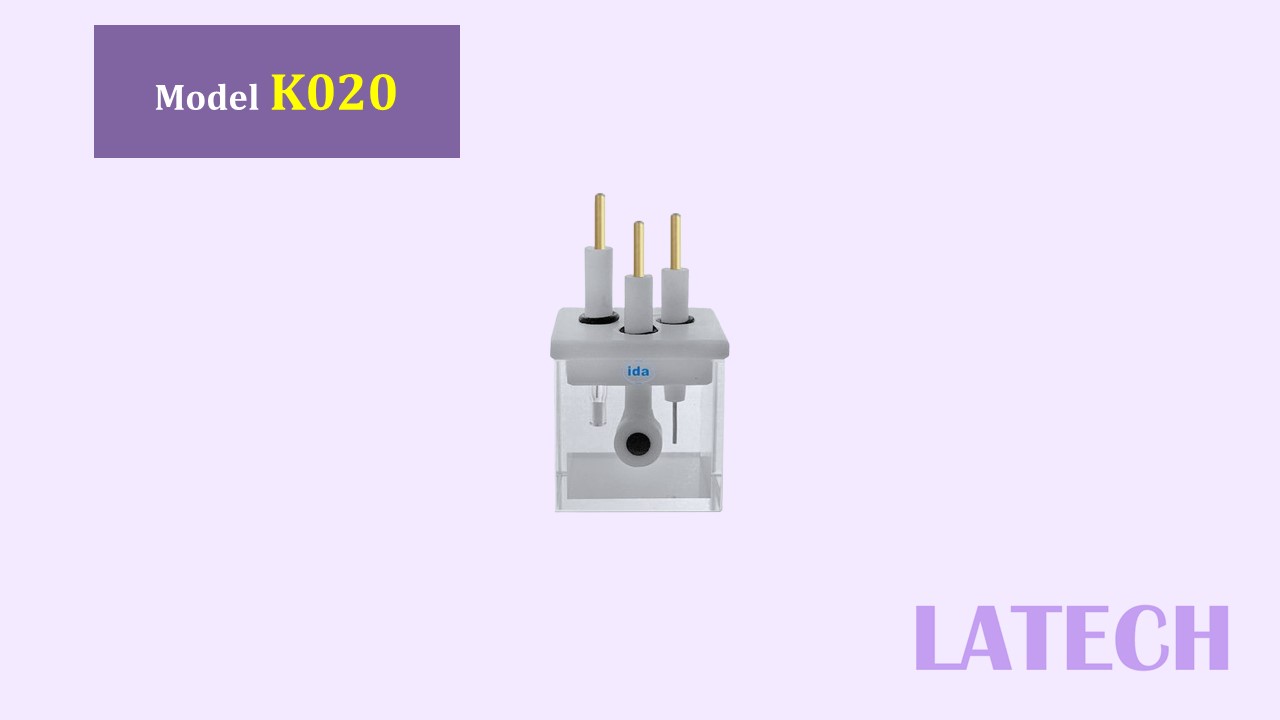

K020

• Photoelectrochemical cell
• All-quartz fusion
• Four-sided light transmission
• Tank sizes available: 50×50×50 mm, 40×40×40 mm, 30×30×30 mm, 35×15×45 mm, 30×30×50 mm, 40×40×50 mm

7

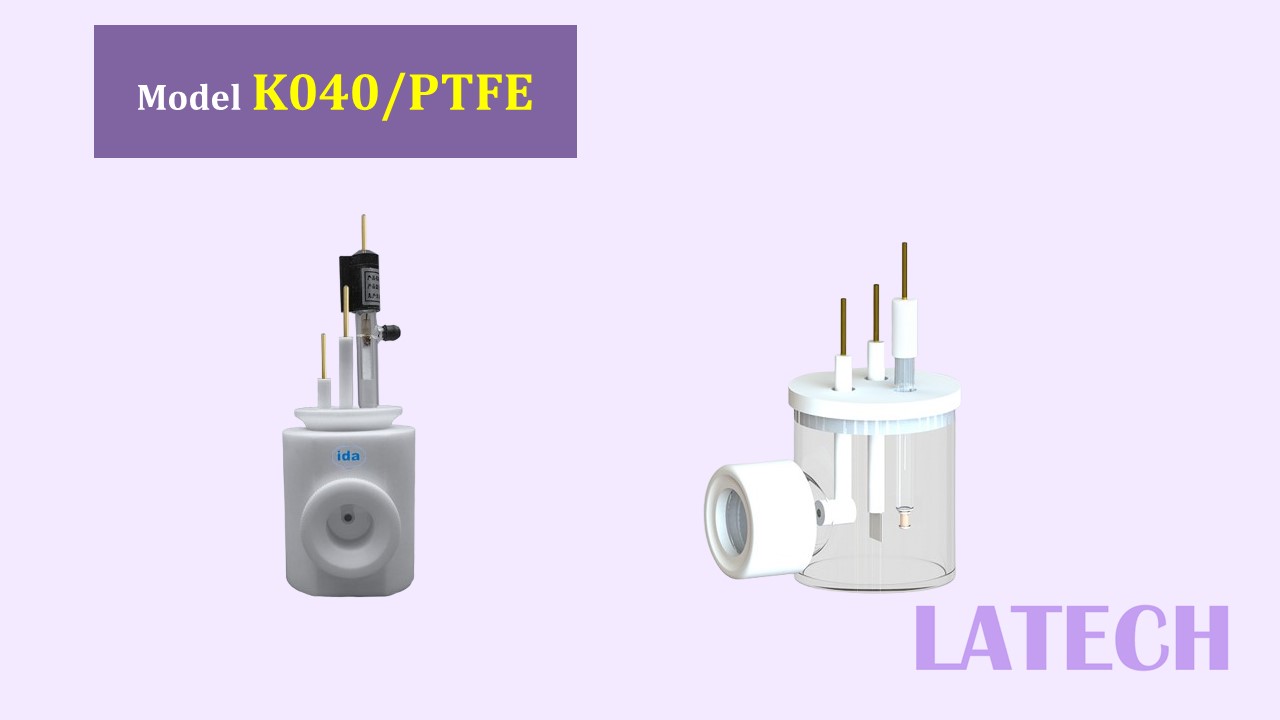

K040

• Photoelectrochemical cell
• Glass or PTFE body
• Quartz window: ϕ24 mm
• Volume: 50 / 100 / 150 mL

8

K040-S

• Photoelectrochemical cell
• Glass or PTFE body
• Quartz window: ϕ24 mm
• Volume: 50 / 100 / 150 mL

9

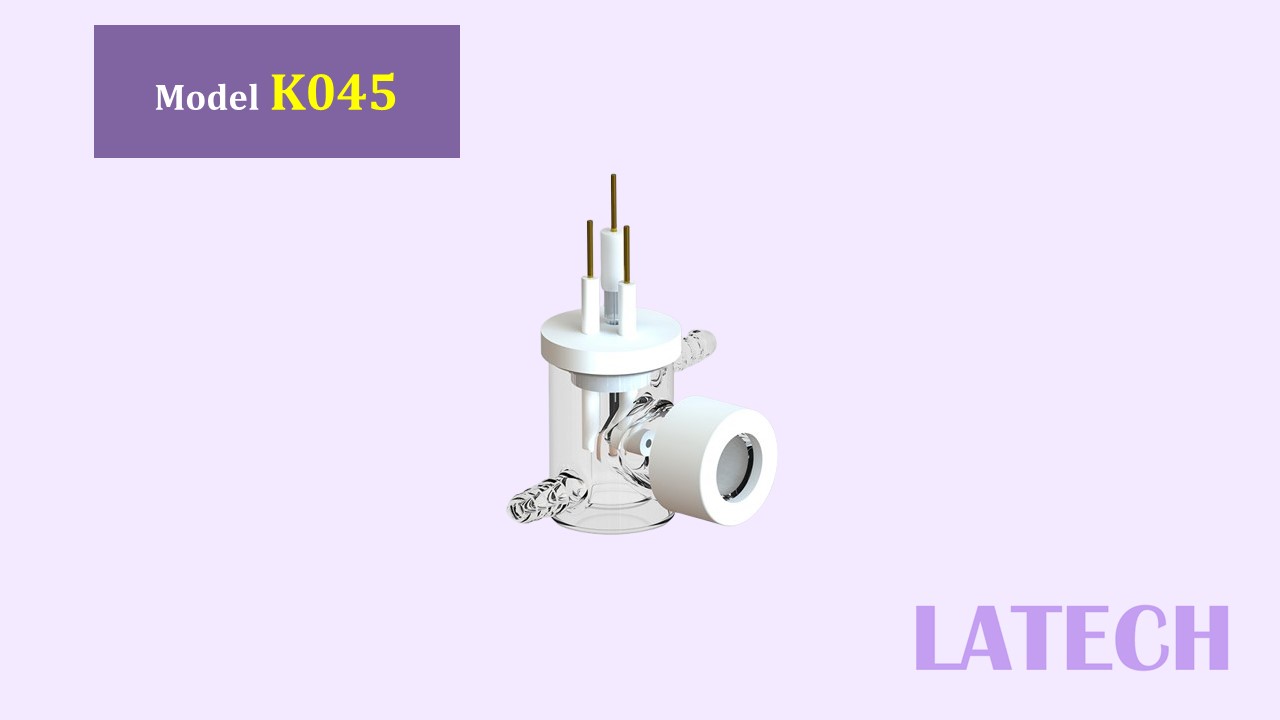

K045

• Photoelectrochemical cell with water bath
• Glass body
• Quartz window: ϕ24 mm
• Volume: 50 / 100 / 150 mL

10

K045-S

• Photoelectrochemical cell with water bath
• Glass body
• Quartz window: ϕ24 mm
• Volume: 50 / 100 / 150 mL

11

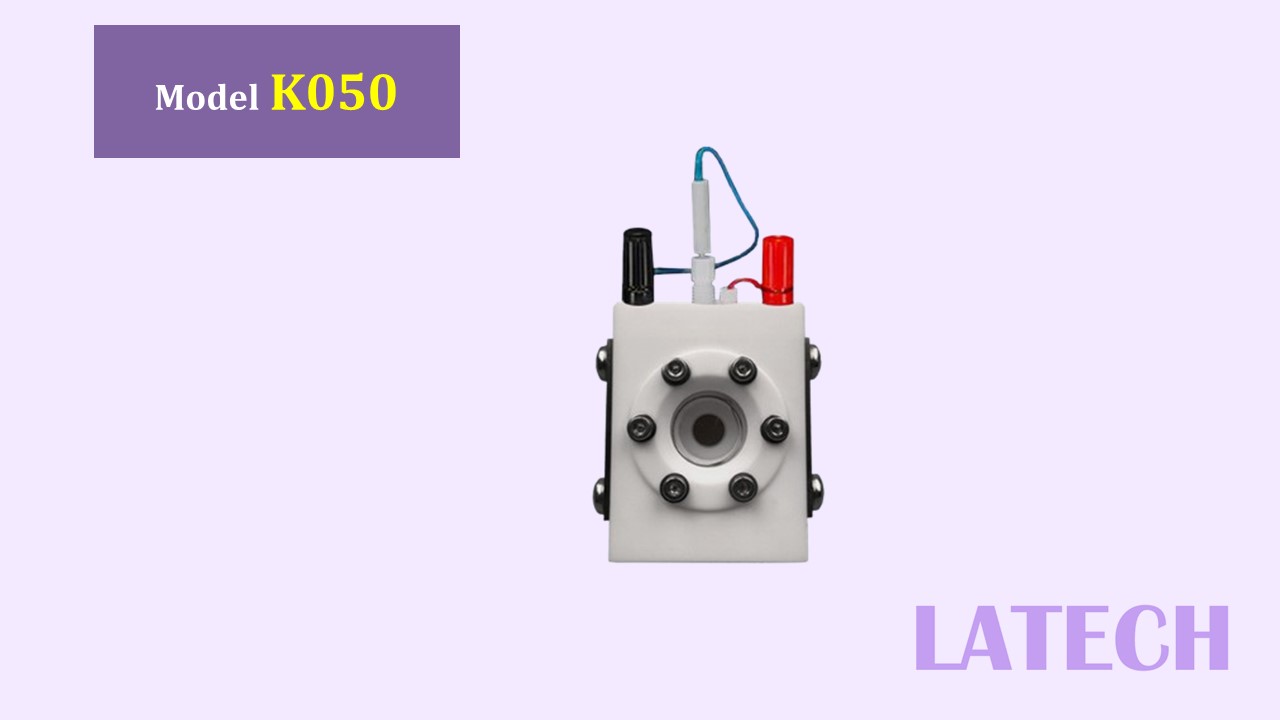

K050

• Photoelectrochemical cell
• Quartz window: ϕ20 mm
• Volume: 5 mL

12

K051

• Photoelectrochemical cell
• Quartz window: ϕ20 mm
• Volume: 5 mL
