IC Tray Wafer Dice Antistatic Chip Box, Die Storage Tray, Die Holder Chiplet Tray
IC Tray Wafer Dice Antistatic Chip Box, Die Storage Tray, Die Holder Chiplet Tray
Description
Product Images
Product Information
| Item |
Description |

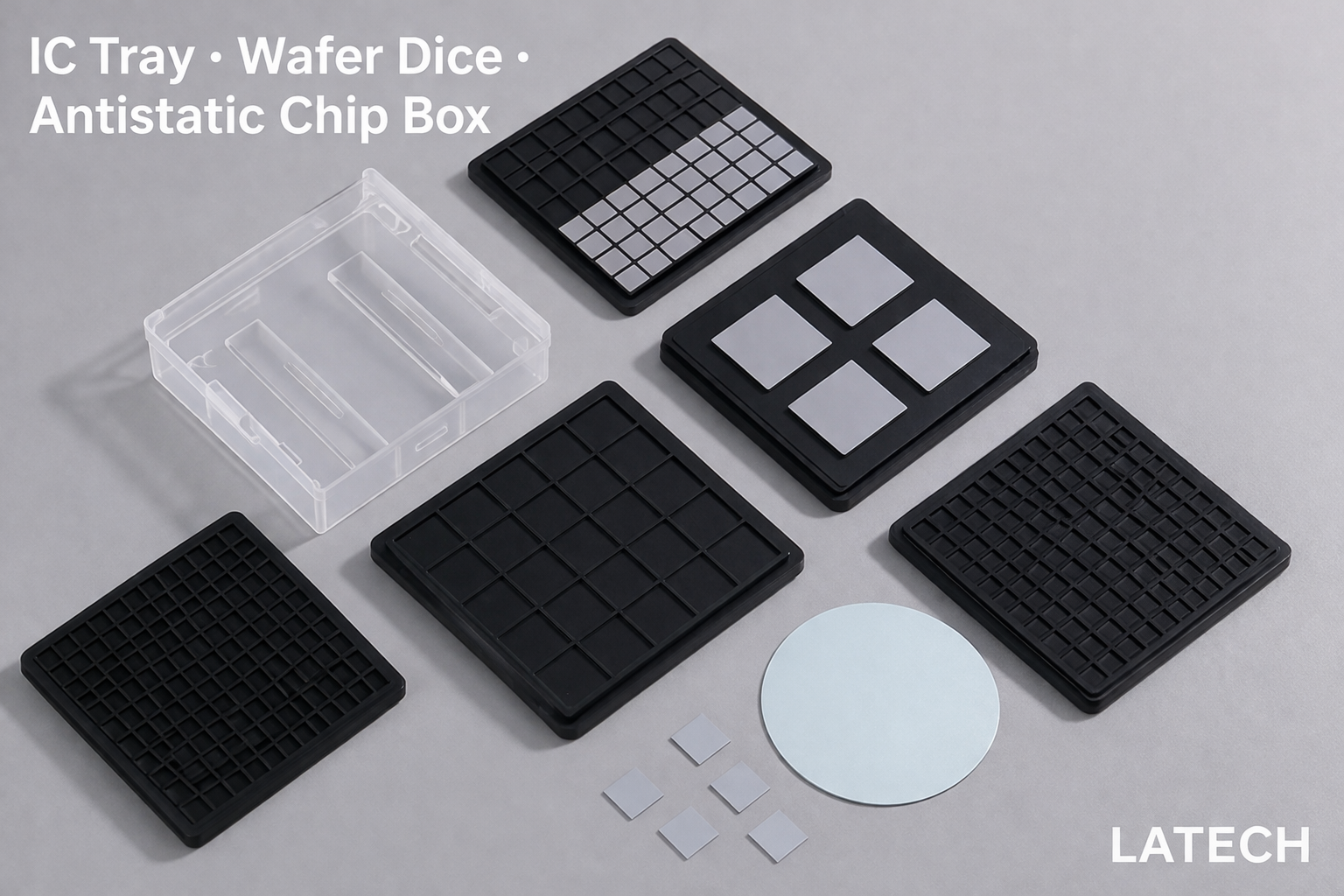

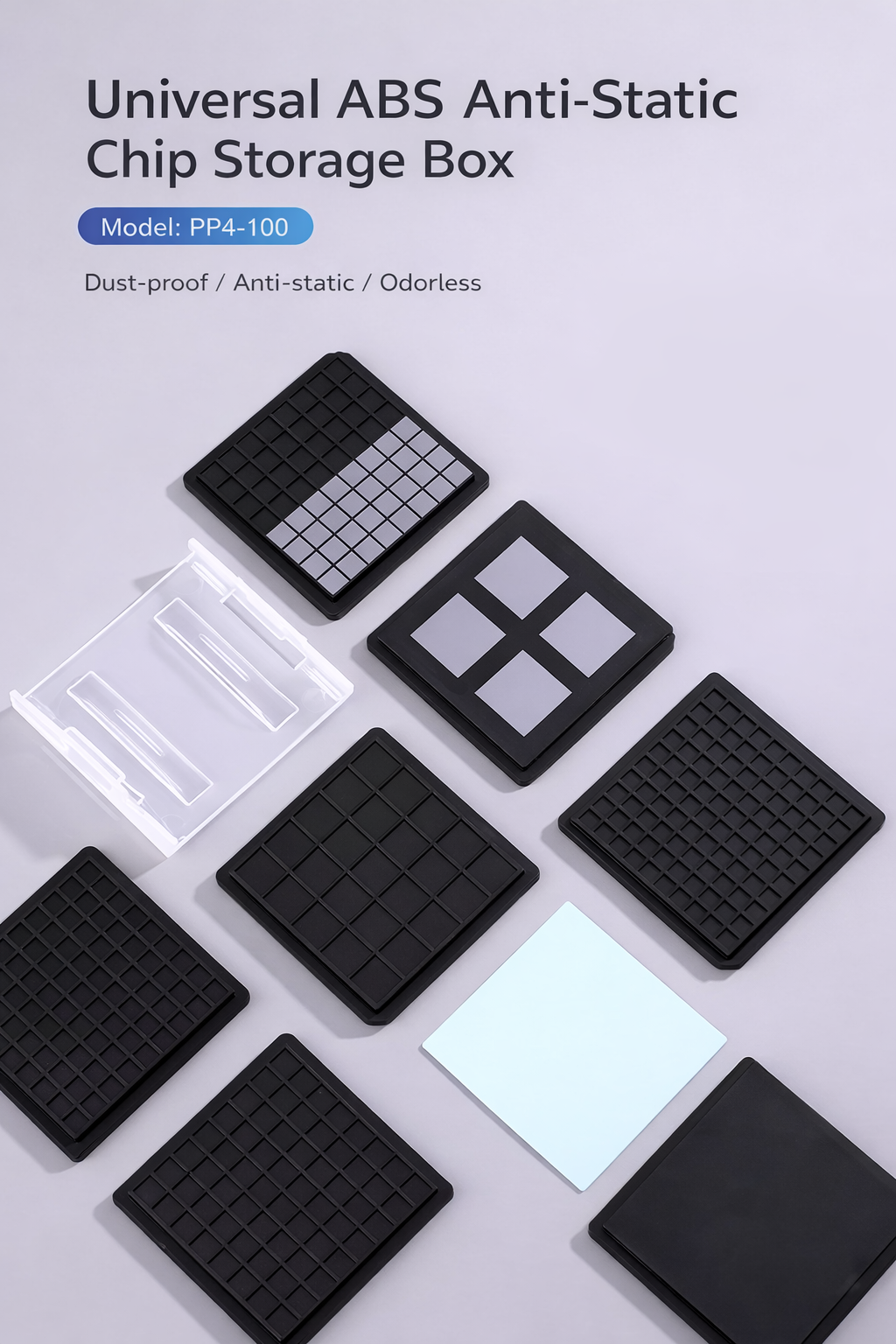

| Name | Wafer Storage Cassette PP4-100 |
| Material | Universal ABS Anti-static Material |
| Set Includes | 1 × Base, 1 × Cover, 1 × Clip, 1 × Anti-static Separator Sheet |
| Size | See drawing below |
Product Details

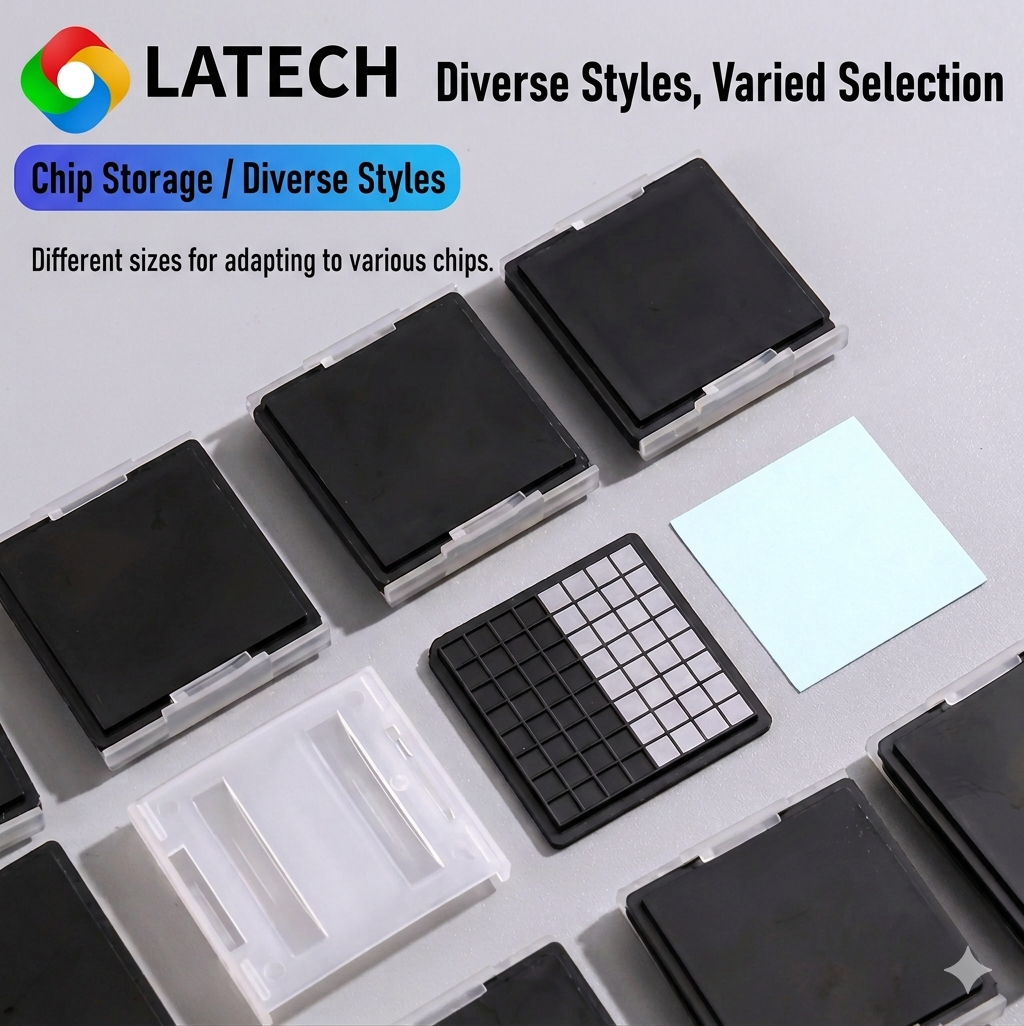

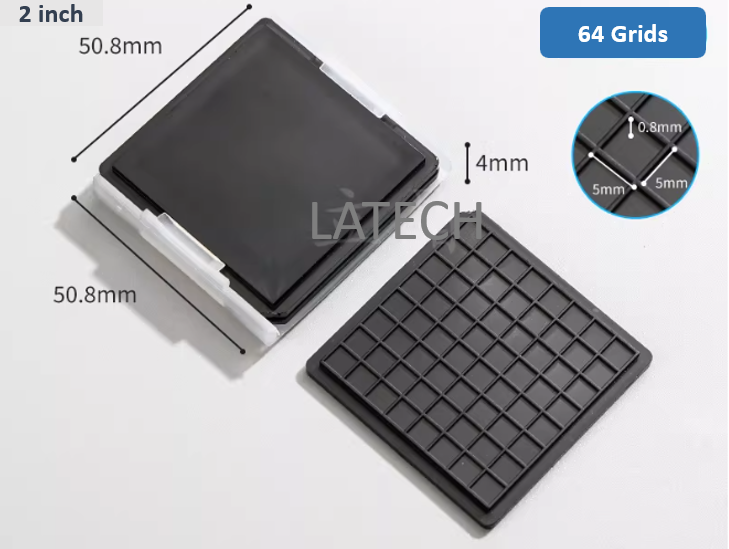

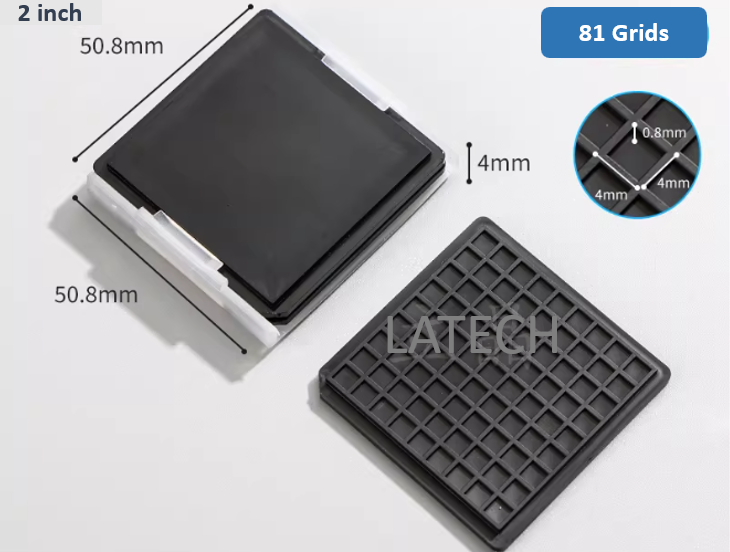

A: Technical Specifications: 2-Inch (50.8mm) Semiconductor Tray Series
|
Grid Count |
Outer Size (mm) |
Inner Grid Size (mm) |
Wall Thickness (mm) |
Visual Reference |
|

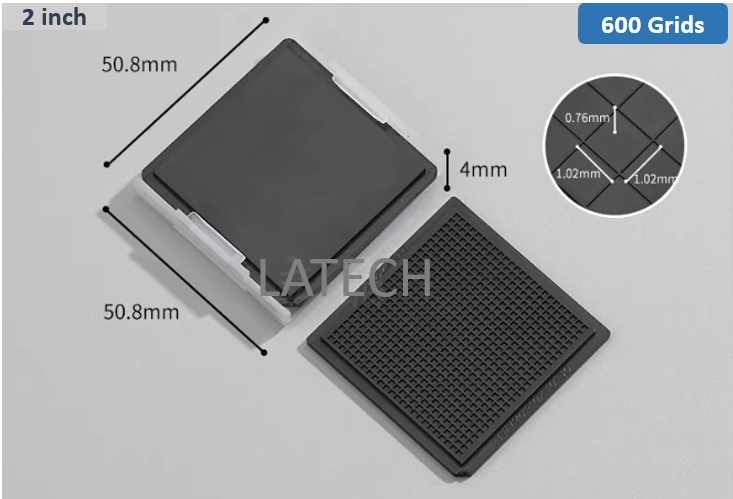

600-Grids |
50.8 × 50.8 × 4 |
1.02 × 1.02 × 0.76 |
0.76 |
Mesh-like |
|
256-Grids |
50.8 × 50.8 × 4 |
2 × 2 × 0.8 |
0.8 |
Small square |
|

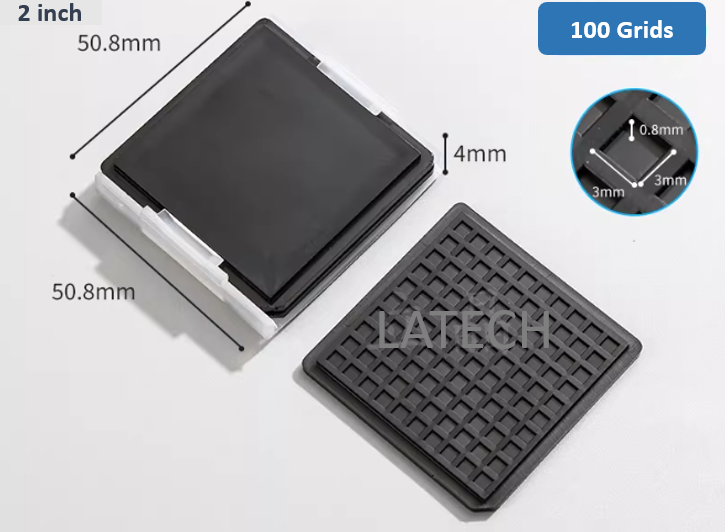

100-Grids |
50.8 × 50.8 × 4 |
3 × 3 × 0.8 |
0.8 |
Standard |
|
81-Grids |
50.8 × 50.8 × 4 |
4 × 4 × 0.8 |
0.8 |
Standard-Large |
|
64-Grids |
50.8 × 50.8 × 4 |
5 × 5 × 0.8 |
0.8 |
Large square |
|
36-Grids |
50.8 × 50.8 × 4 |
6.1 × 6.1 × 0.71 |
0.76 |
Wide-set |
|
36-Grids |
50.8 × 50.8 × 4 |
7.11 × 7.11 × 0.76 |
0.71 |
Wide-set |
|
25-Grids |
50.8 × 50.8 × 4 |
8 × 8 × 0.8 |
0.8 |
Large spacing |
|
16-Grids |
50.8 × 50.8 × 4 |
9 × 9 × 1.8 |
1.8 |
Extra-Large |
|
16-Grids |
50.8 × 50.8 × 4 |
10 × 10 × 0.8 |
0.8 |
Extra-Large |
|
15-Grids |
50.8 × 50.8 × 4 |
13 × 7 × 0.8 |
0.8 |
Extra-Large |
|
9-Grids |
50.8 × 50.8 × 4 |
13 × 13 × 0.8 |
0.8 |
Very Large |
|
9-Grids |
50.8 × 50.8 × 4 |
14 × 14 × 0.78 |
0.78 |
Very Large |
|
4-Grids |
50.8 × 50.8 × 4 |
15.2 × 15.2 × 0.8 |
0.8 |
Maximum Grid |
|

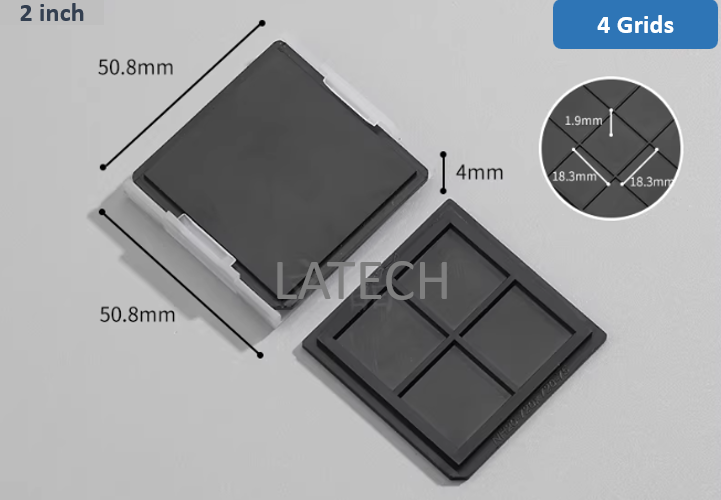

4-Grids |
50.8 × 50.8 × 4 |
18.3 × 18.3 × 1.9 |
1.9 |
Maximum Grid |
B. Technical Specifications: 4-Inch (101.6mm) Semiconductor Tray Series
|
Grid Count |
Outer Size (mm) |
Inner Grid Size (mm) |
Wall Thickness (mm) |
Visual Reference |
|
36-Grids |
101.6 × 101.6 × 8 |
8.2 × 8.2 × 1.2 |
1.2 |
Extra-Large |
|
36-Grids |
101.6 × 101.6 × 8 |
12.1 × 12.1 × 0.51 |
0.51 |
Extra-Large |
|
25-Grids |
101.6 × 101.6 × 8 |
16.7 × 16.4 × 1.14 |
1.14 |
Very Large |
|
16-Grids |
101.6 × 101.6 × 8 |
18.5 × 18.5 × 1.19 |
1.19 |
Very Large |
|
16-Grids |
101.6 × 101.6 × 8 |
20.1 × 20.1 × 1.14 |
1.14 |
Very Large |
|
9-Grids |
101.6 × 101.6 × 8 |
27.1 × 27.1 × 1.02 |
1.02 |
Maximum Grid |
|
4-Grids |
101.6 × 101.6 × 8 |
35 × 35 × 2.5 |
2.5 |
Maximum Grid |

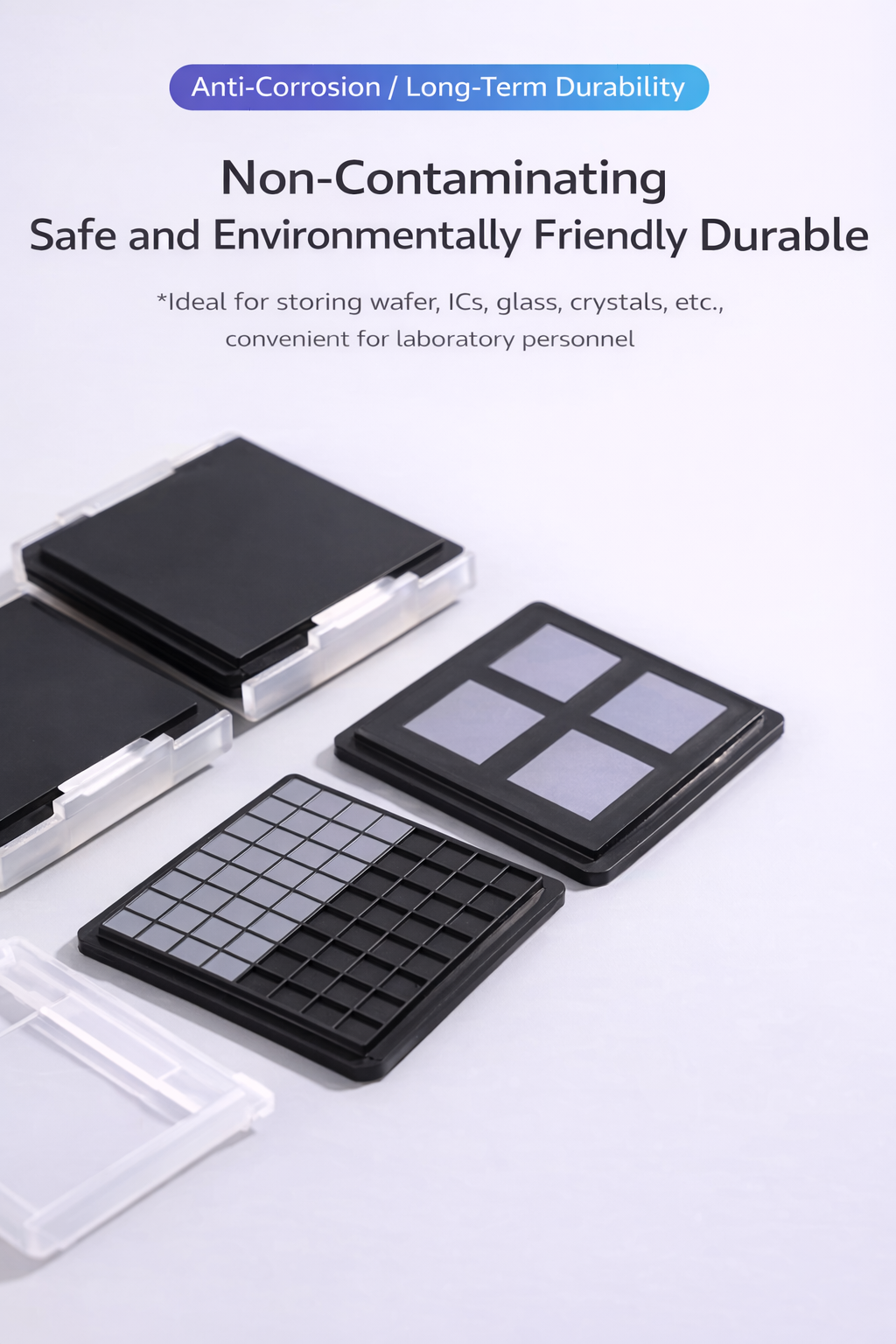

Product Features
-
Suitable for wafers, ICs, glass, quartz, optical components, and other thin devices.
-
The precision anti-static ABS material storage tray ensures effective protection and safe storage.
Advantages

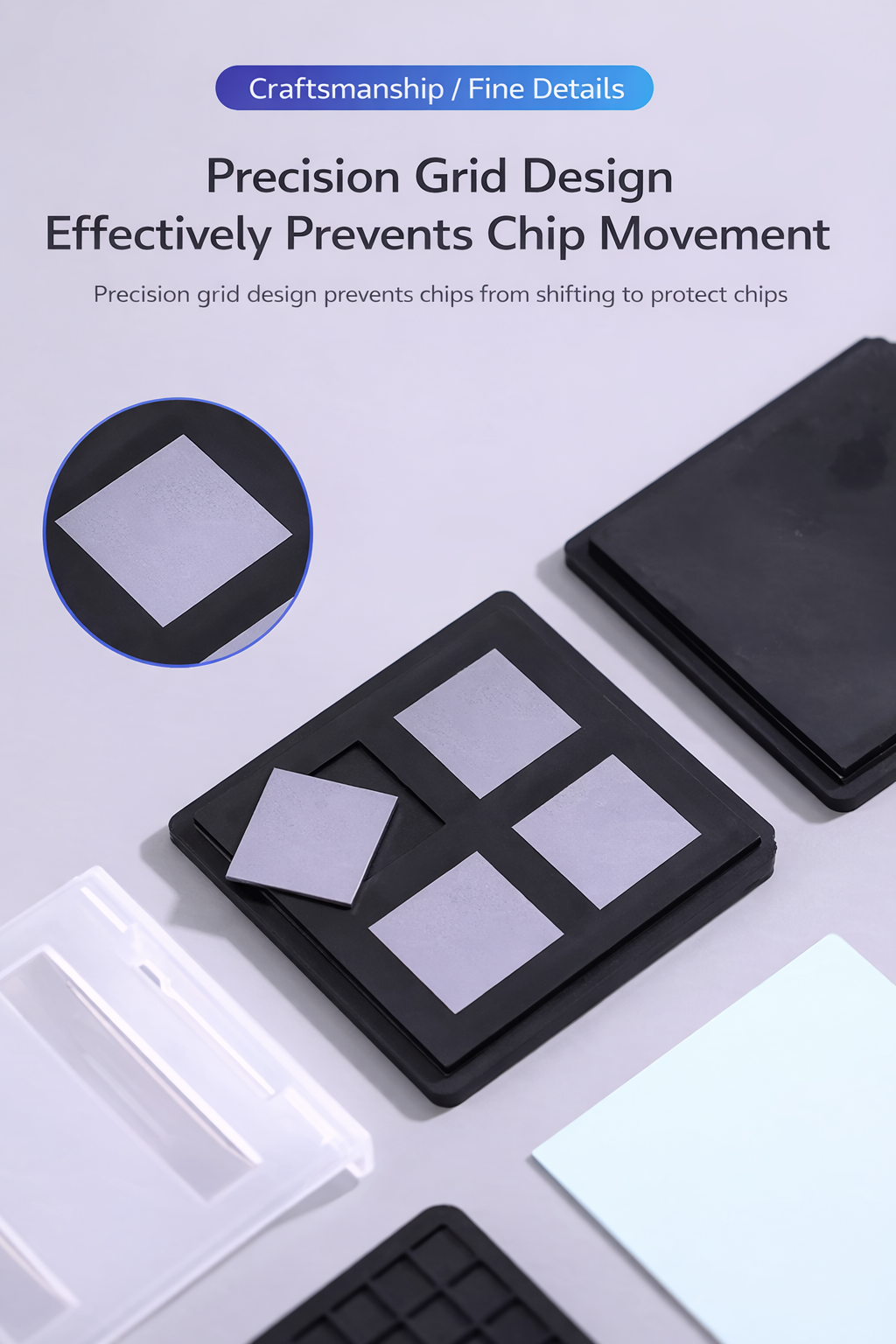

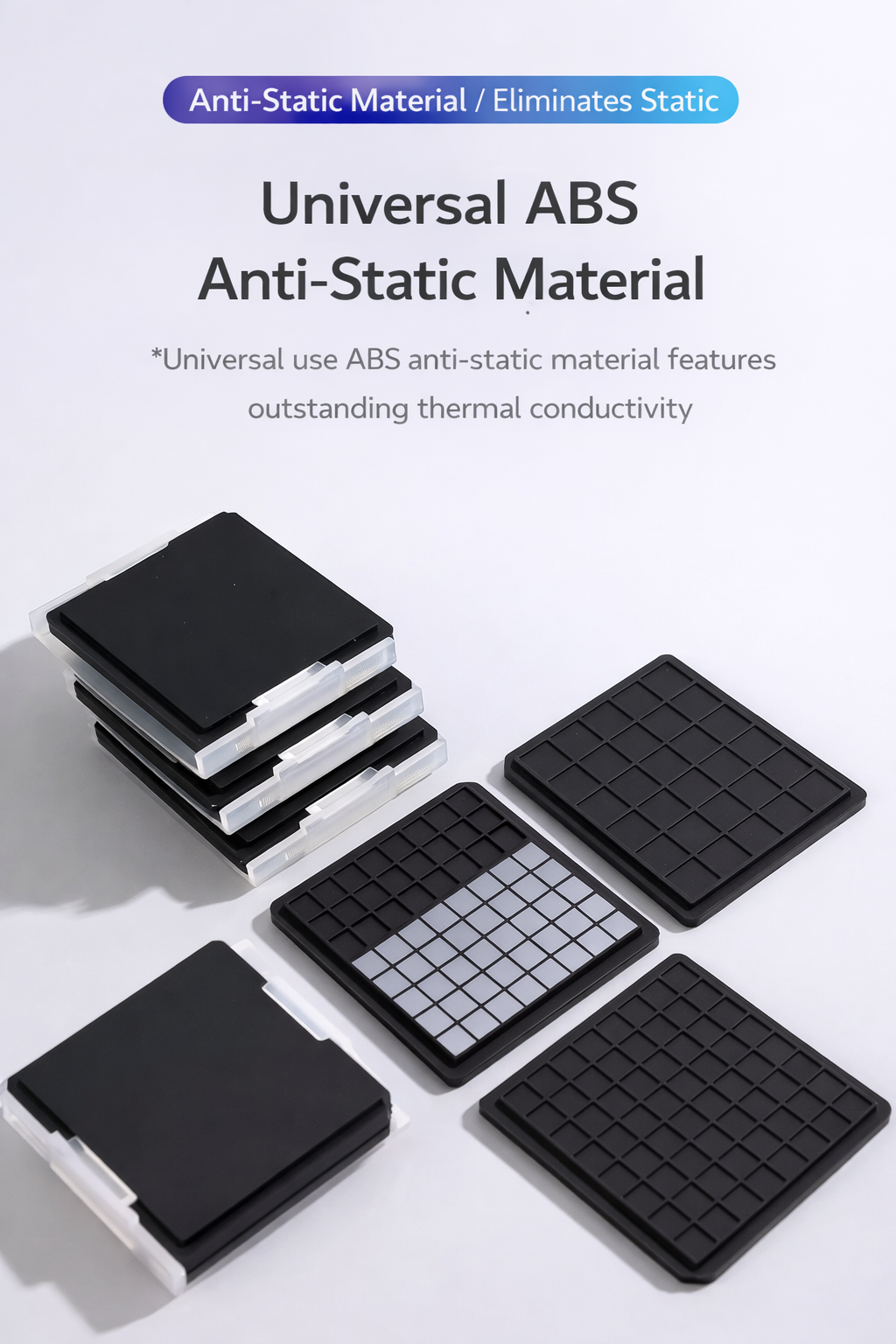

- Made from universal ABS anti-static material, with excellent conductivity and heat resistance.
- Can eliminate static electricity.

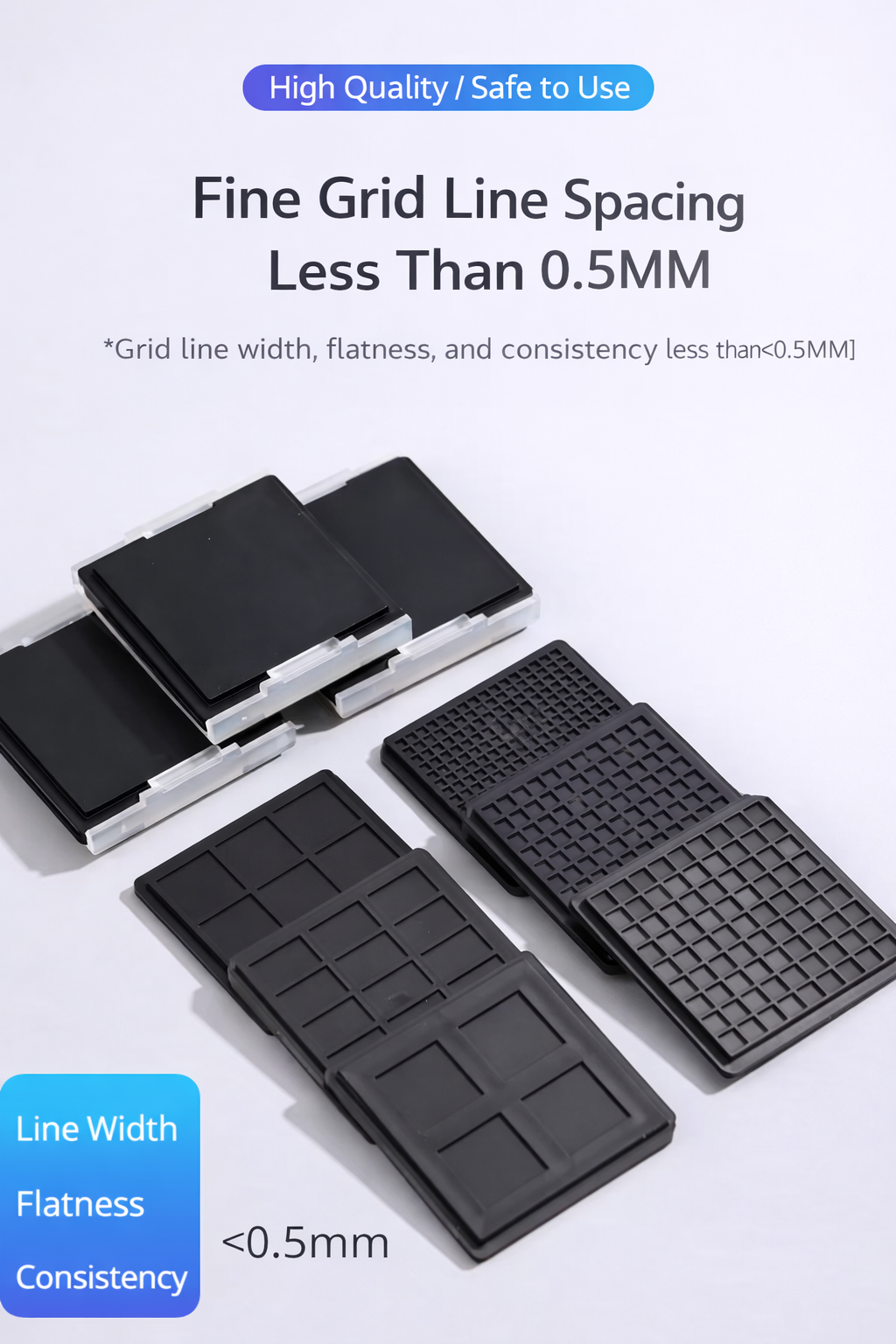

- Internal surface polished, no burrs, smooth surface, flatness ≤ 0.5 mm, safe for wafers.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
