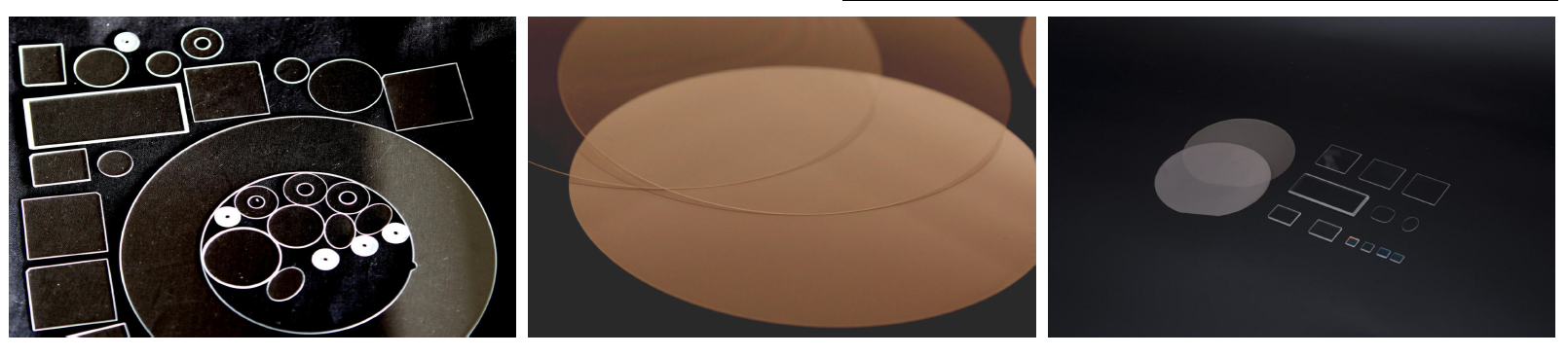

Fused Quartz Wafers

Highest quality quartz slides, with mirror or epi-polished surfaces! Different material grades of choices

Enquire about this product ↗
Prefer a quick conversation?WhatsApp us +65 8176 3868

Fused Quartz Wafers Specifications

Material options
JGS1, JGS2, JGS3, Borofloat 33, Coring, B270, BK7, soda lime and others

Description

Material

 JGS1/JGS2 /JGS3/Borofloat 33 /Coring /B270/BK7 /Soda lime /etc

Spec

unit

3”

4”

5″

6″

8″

12″

Diameter/size(or Square)

mm

76.2

100

125

150

200

300

Tol(±)

mm

<0.1~.25 mm

Thinnest Thickness

mm

>0.10

>0.18

>0.30

>0.30

>0.30

>0.50

Primary Flat

mm

22

32.5

42.5

57.5 / notch

notch

notch

LTV (5mmx5mm)

µm

<2

<2

<2

<2

<2

<10

TTV

µm

<8

<10

<15

<20

<30

<30

Bow

µm

±20

±25

±40

±40

±60

±60

Warp

µm

<30

<40

<50

<50

<60

<60

PLTV(<0.5um)

%

≥95%(5mm*5mm)

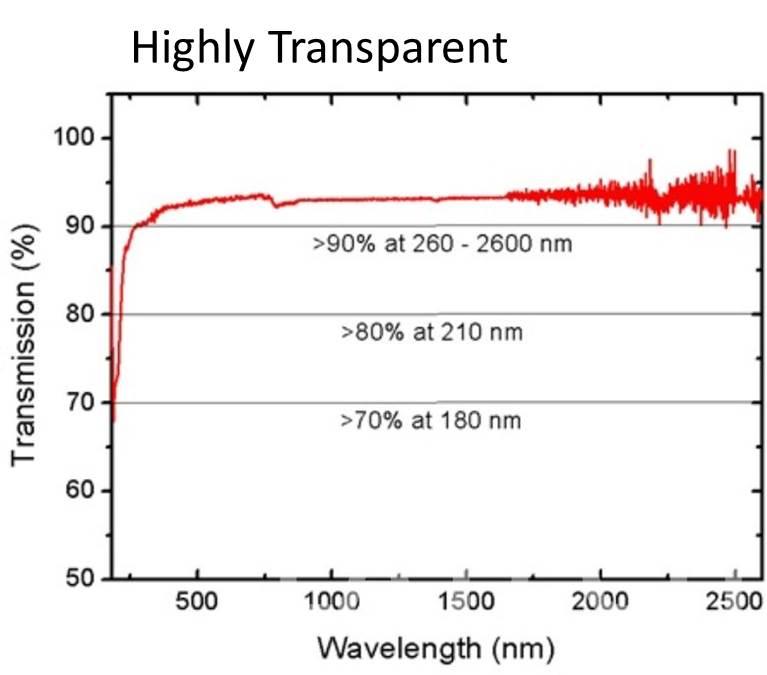

Transmittance

UV,Optical,IR or Custom option

Edge Rounding

mm

Compliant with SEMI M1.2 Standard/refer to IEC62276

Surface Type

Single Side Polished /Double Sides Polished

Polished side Ra

nm

<1.0nm or specific per requested

Back Side Criteria

µm

General is 0.2-0.5µm or as customized





Appearance

Contamination

None

Particles >0.3µm

<=30

Saw Marks, striations

None

Scratch

None

Cracks, crowsfeel saw marks, stains

None

Datasheet

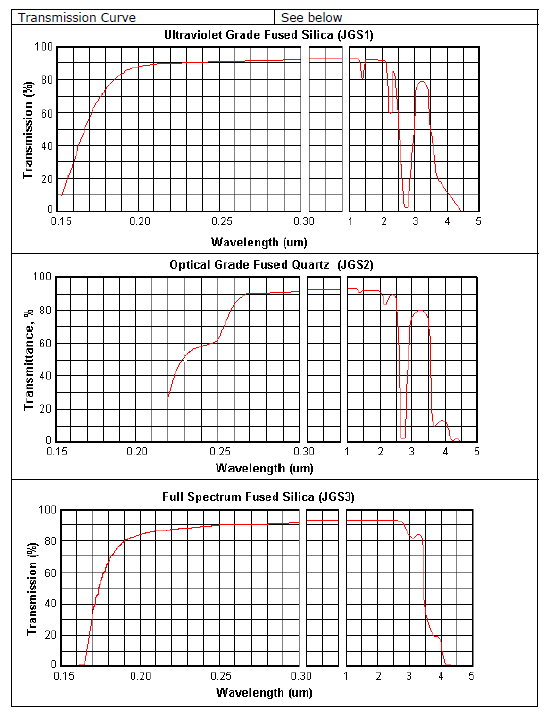

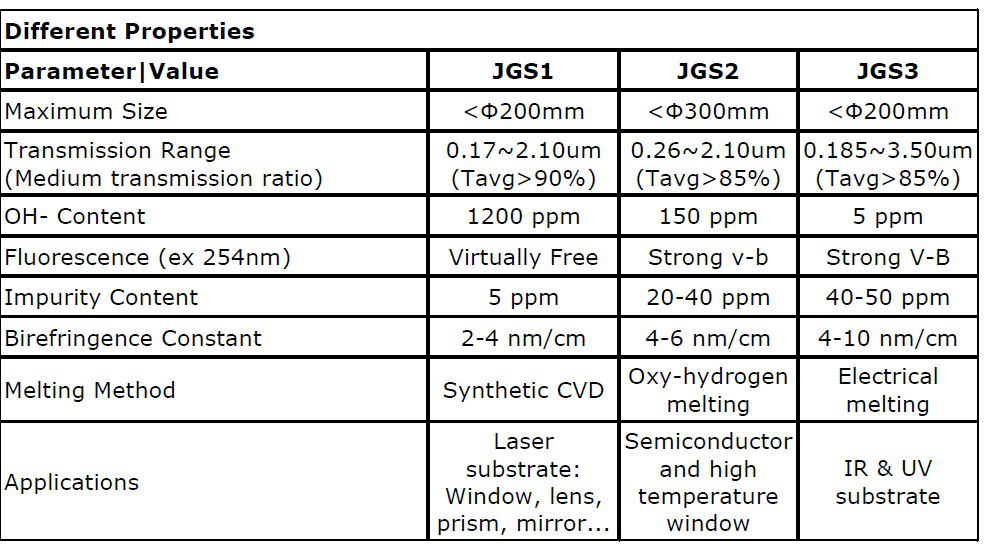

View JGS1 Fused Silica property list

View JGS2 Fused Silica property list

View JGS3 Fused Silica property list

Fused Silica
Mechanical Units of Measure SI/Metric (Imperial)
Density gm/cc (lb/ft3) 2.2 -137.4
Porosity % (%) 0 0
Color — clear —
Flexural Strength MPa (lb/in2x103) — —
Elastic Modulus GPa (lb/in2x106) 73 -10.6
Shear Modulus GPa (lb/in2x106) 31 -4.5
Bulk Modulus GPa (lb/in2x106) 41 -6
Poisson’s Ratio — 0.17 -0.17
Compressive Strength MPa (lb/in2x103) 1108 -160.7
Hardness Kg/mm2 600 —
Fracture Toughness KIC MPa•m1/2 — —
Maximum Use Temperature (no load) °C (°F) 1100 -2000

Thermal
Thermal Conductivity W/m•°K (BTU•in/ft2•hr•°F) 1.38 -9.6
Coefficient of Thermal Expansion 10–6/°C (10–6/°F) 0.55 -0.31
Specific Heat J/Kg•°K (Btu/lb•°F) 740 -0.18
Electrical
Dielectric Strength ac-kv/mm (volts/mil) 30 -750
Dielectric Constant @ 1 MHz 3.82 -3.82
Dissipation Factor @ 1 MHz 0.00002 -0.00002
Loss Tangent @ 1 MHz — —
Volume Resistivity ohm•cm >1010 —
