Type:

• Type A: long exposed Pt wire

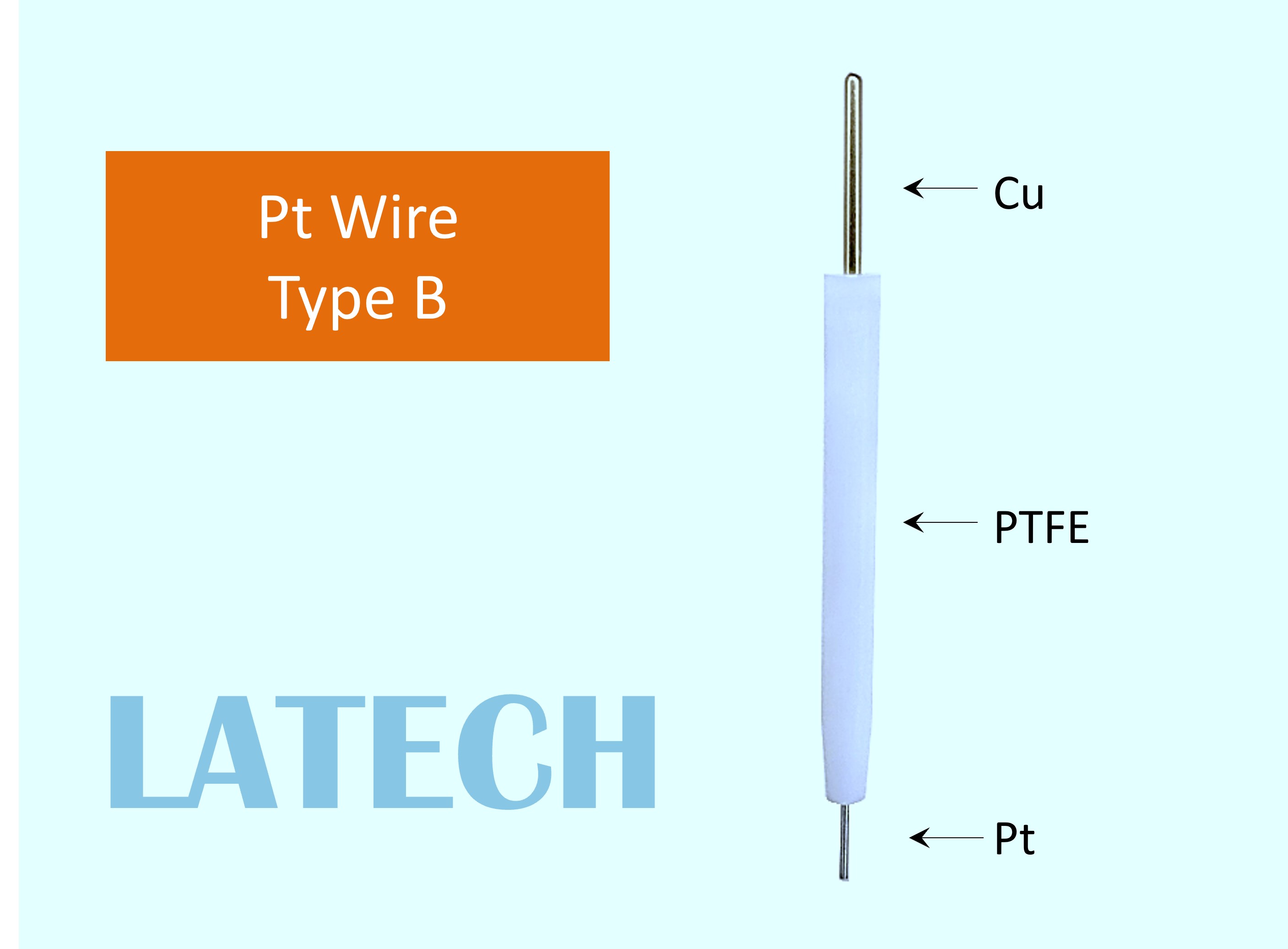

• Type B: short exposed Pt wire

• Type C: fully sealed Pt wire

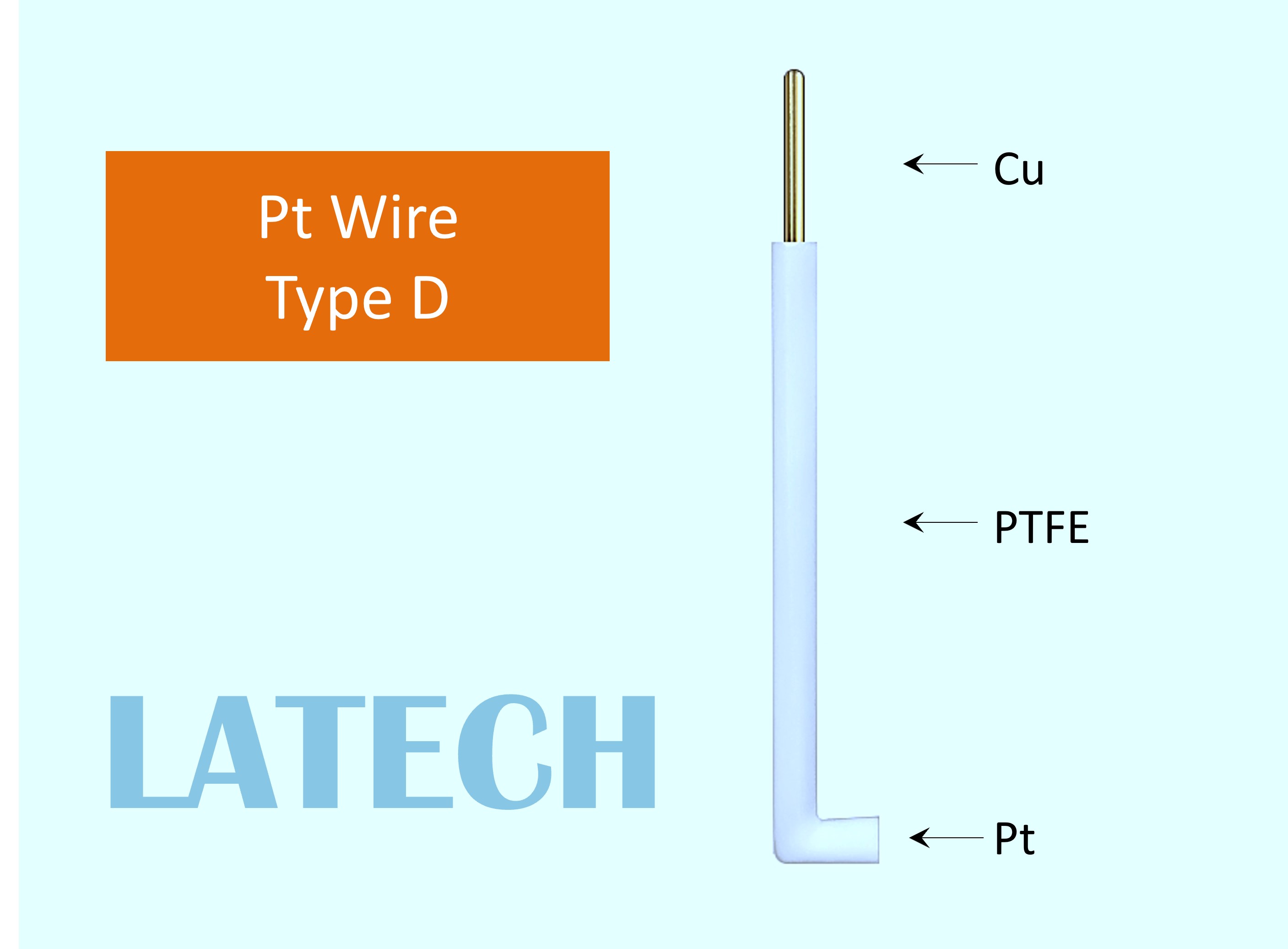

• Type D: L-shaped fully sealed Pt wire

Dimension:

Refer to the sizes of different types below

Product Number

Dimension

Pt005

Φ0.5 x 37 mm

Pt017

Φ1 x 37 mm

Product Number

Dimension

Pt015

Φ1 x 5 mm

Pt010

Φ1 x 10 mm

Product Number

Diameter of Pt Core

Diameter of Sheath Material

Pt105

Φ 0.5 mm

6 mm

Pt110

Φ 1 mm

6 mm

Pt120

Φ 2 mm

6 mm

Pt130

Φ 3 mm

6 mm

Pt140

Φ 4 mm

8 mm

Pt150

Φ 5 mm

10 mm

Pt160

Φ 6 mm

12 mm

Product Number

Diameter of Pt Core

Diameter of Sheath Material

L-Pt105

Φ 0.5 mm

6 mm

L-Pt110

Φ 1 mm

6 mm

L-Pt120

Φ 2 mm

6 mm

L-Pt130

Φ 3 mm

6 mm

L-Pt140

Φ 4 mm

8 mm

L-Pt150

Φ 5 mm

10 mm

L-Pt160

Φ 6 mm

12 mm
