Description
| Product: | Graphite Electrode |
| Material: |
• Metal Core: Graphite >99.99% • Insulating Shell: PTFE |
| Overall length: | Typically 120 mm |
|
Types: |
• Type A: fully sealed graphite rods • Type B: partially sealed graphite rods • Type C: bare graphite rods |
| Dimention |
Refer to information below for availalbe sizes |

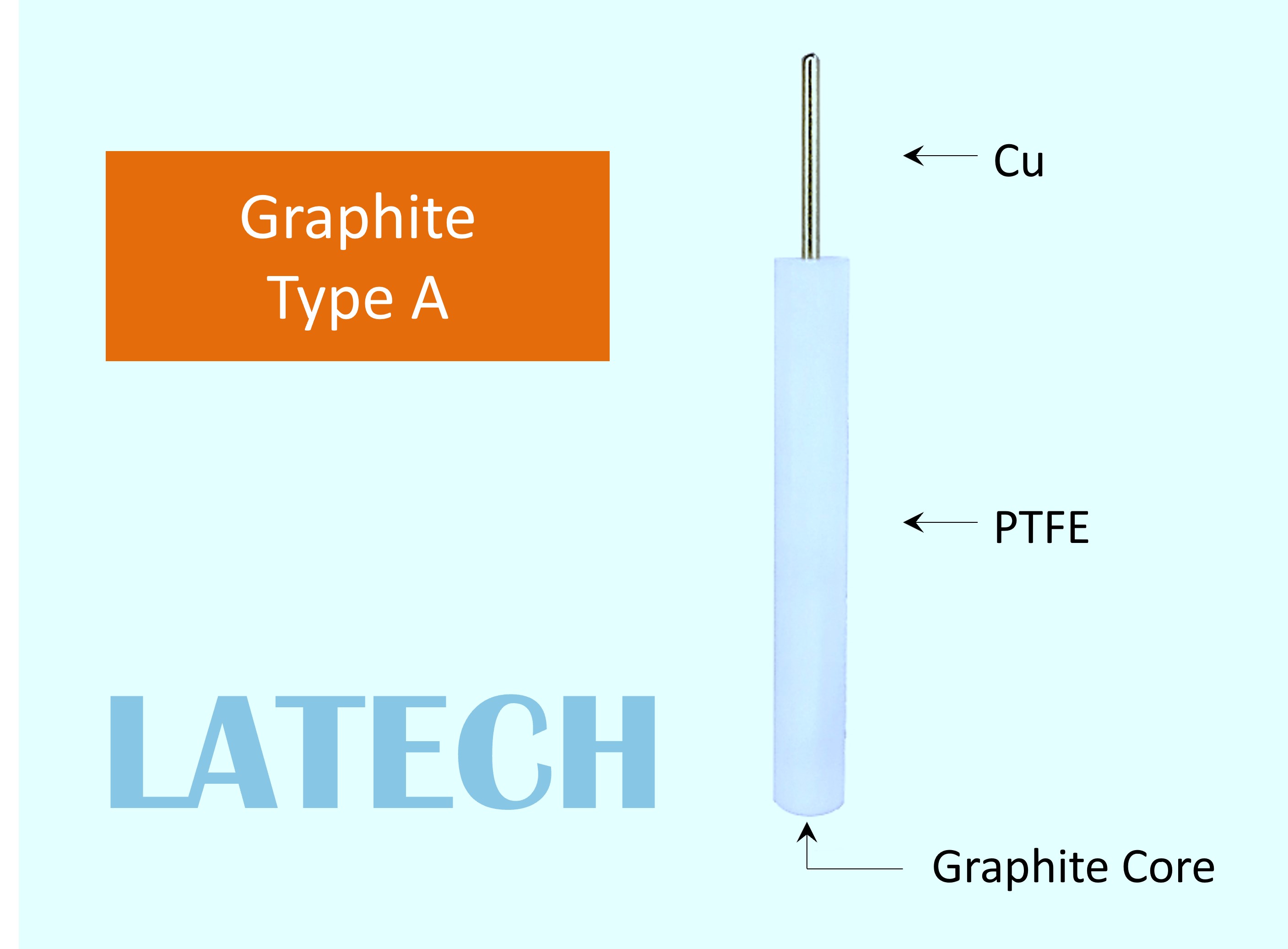

Product number and corresponding sizes for 【Type A】
Overall size: Cu connect (Dia 2*20 mm) + PTFE shell/Graphite core (Length 60/80/100 mm, Diameter see below)
| Category | Product Number | Diameter (Φ, mm) |
| Spectral pure graphite | C120 | Φ2 |
| Spectral pure graphite | C130 | Φ3 |
| Spectral pure graphite | C140 | Φ4 |
| Spectral pure graphite | C150 | Φ5 |
| Isotropic graphite | CC130 | Φ3 |
| Isotropic graphite | CC140 | Φ4 |
| Isotropic graphite | CC150 | Φ5 |

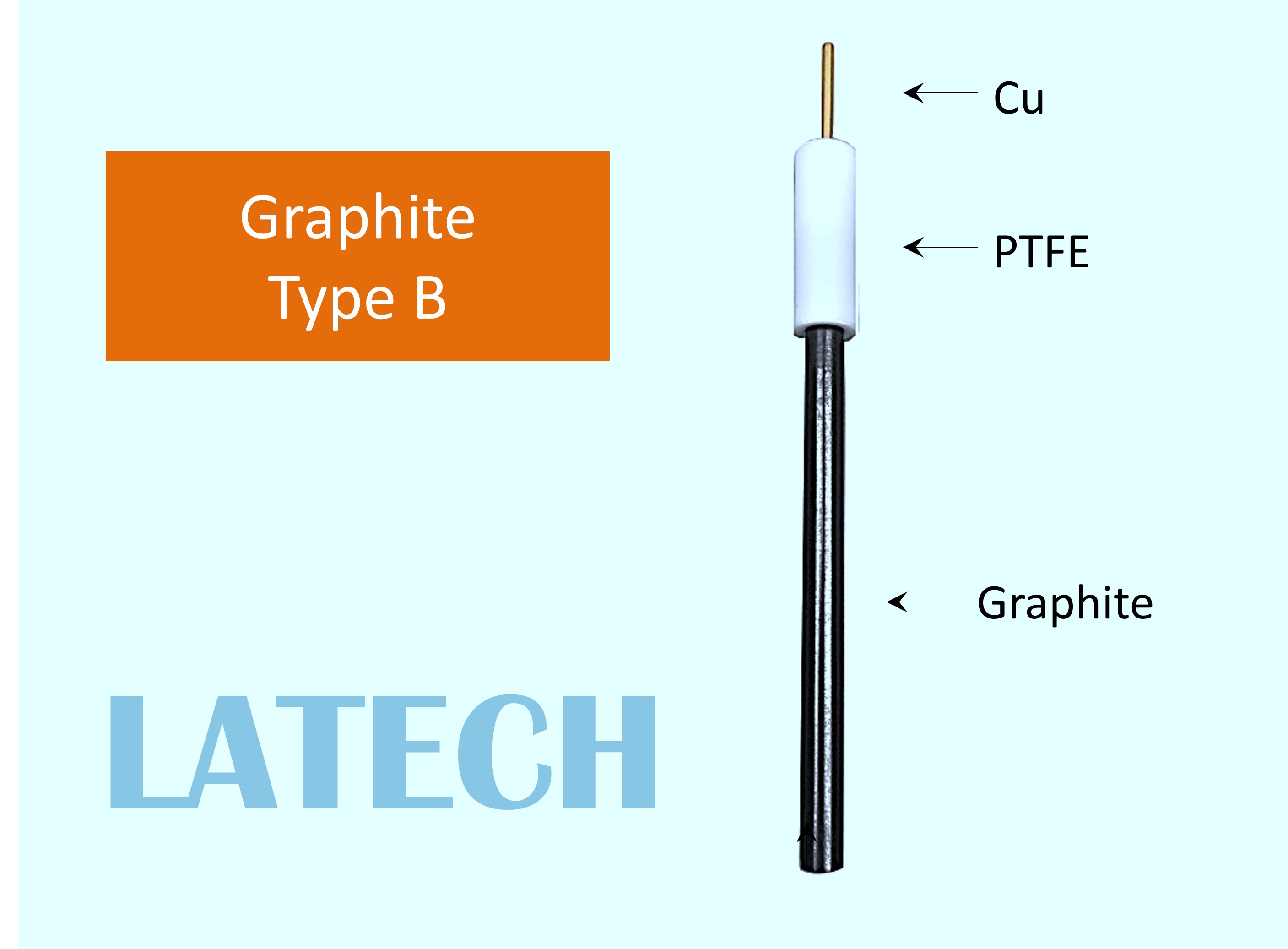

Product number and corresponding sizes for 【Type B】
- Overall size: Cu connect (Dia 2*20 mm) + PTFE shell (Length 30 mm) + Graphite Rod (Length 80 mm)
- Spectral pure graphite used.
| Product Number | Graphite Diameter (Φ, mm) | PTFEDiameter (Φ, mm) |
| C303 | Φ3 | Φ6 |
| C304 | Φ4 | Φ8 |
| C305 | Φ5 | Φ10 |
| C306 | Φ6 | Φ10 |

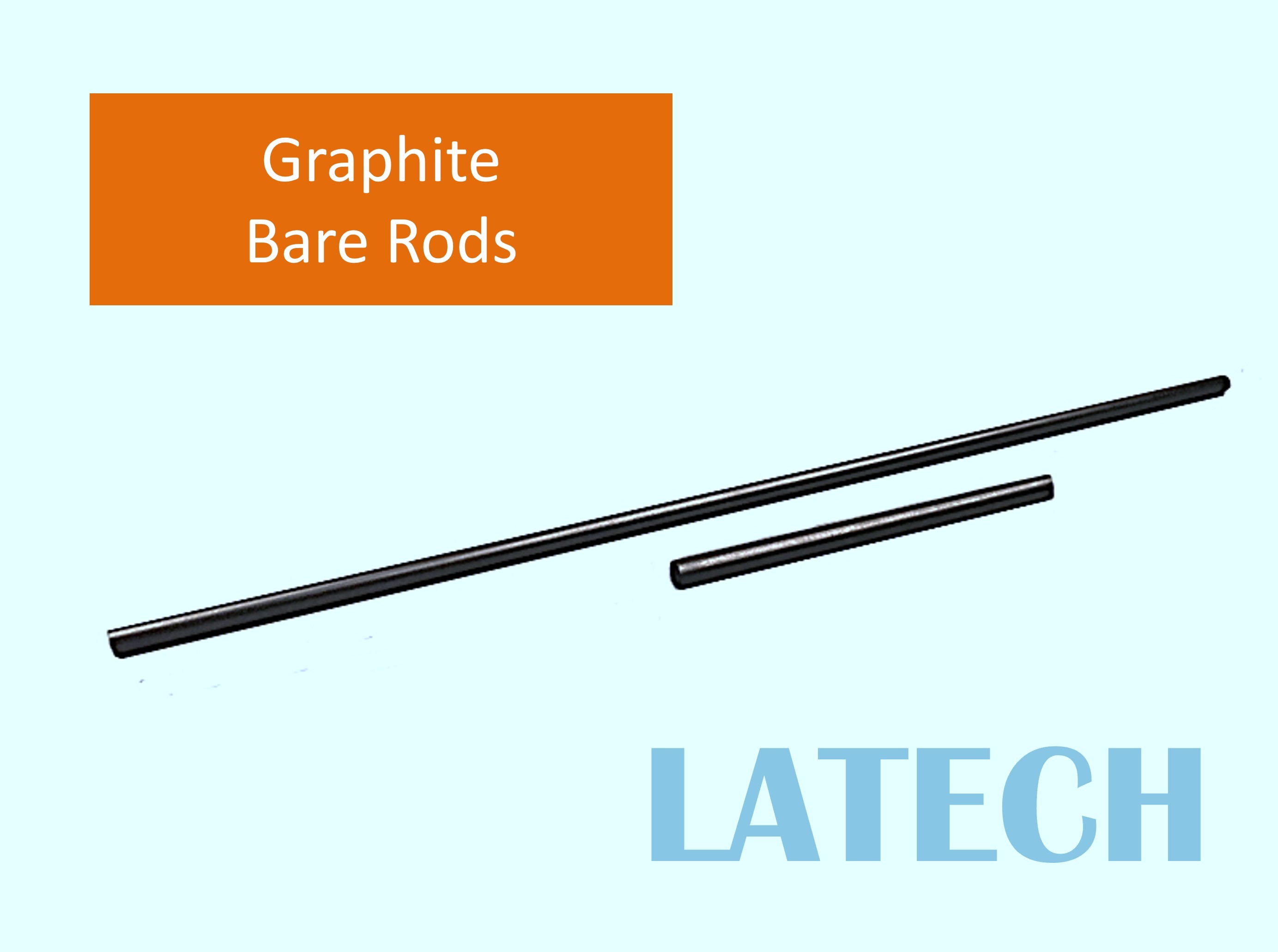

Product number and corresponding sizes for 【Type C】
- Length customized.
- Spectral pure graphite used.
| Category | Product Number | Diameter (Φ, mm) |
| Spectral pure graphite | C105 | Φ5 |
| Spectral pure graphite | C106 | Φ6 |
