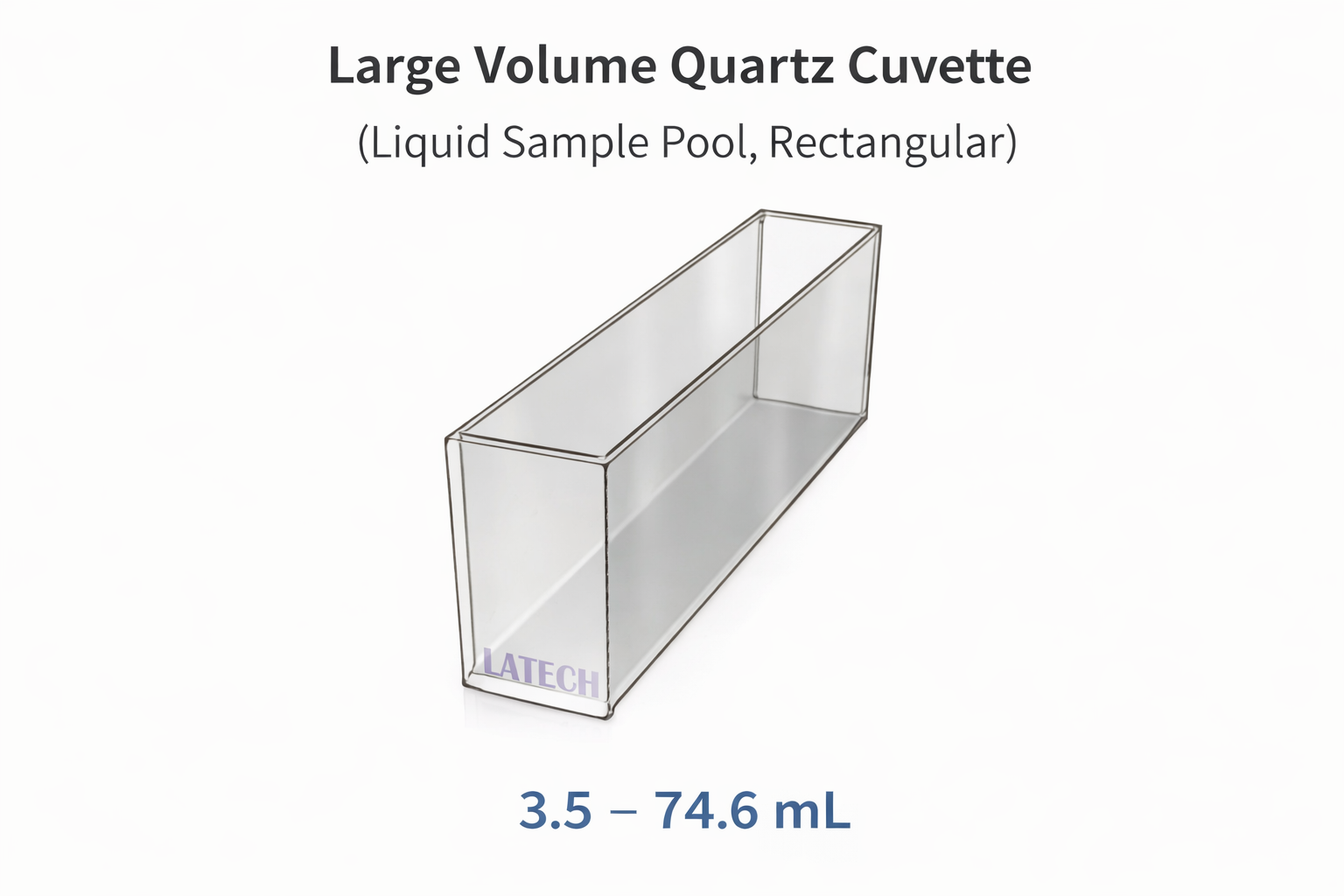

Large Volume Quartz Cuvette (Liquid Sample Pool, Rectangular)
Designed for large-volume liquid analysis (3.5–74.6 mL) where standard cuvettes are not suitable. Ideal for applications requiring higher sample volume or non-standard testing conditions.
Description
Description
This rectangular liquid sample pool is designed for large-volume spectroscopic measurements, offering a practical alternative to standard cuvettes for samples that require more volume or special handling.
It is especially suitable for samples that are:
- Large in volume
- Viscous or non-uniform
- Difficult to handle using conventional cuvettes
The open design allows easy sample loading and is suitable for manual testing and reaction monitoring.
Applications
- UV-Vis spectroscopy with large sample volumes
- Chemical reaction monitoring
- Materials and electrochemical studies
- Viscous or heterogeneous liquid analysis
Available Materials
- Quartz: 190–2500 nm
- IR Quartz: 250–3500 nm
- Optical Glass: 340–2500 nm
Specifications
Available in multiple sizes with volumes ranging from 3.5 mL to 74.6 mL, with different path lengths for specialized testing requirements.
|
Outside Dimension (H × W × D, mm) |
Path Length (mm) |
Indisde Width (mm) |
Volume (mL) |
Serial Number | ||
|
ES-Quartz 190-2500 nm |
IR-Quartz 250-3500 nm |
Optical Glass 340-2500 nm |
||||
| 40 × 20 × 10.4 | 6.35 | 16 | 3.5 | Q-321 | I-321 | G-321 |
| 40 × 20 × 16.7 | 12.7 | 16 | 7.1 | Q-322 | I-322 | G-322 |
| 40 × 20 × 29.4 | 25.4 | 16 | 14.2 | Q-323 | I-323 | G-323 |
| 40 × 20 × 54.8 | 50.8 | 16 | 28.4 | Q-324 | I-324 | G-324 |
| 40 × 20 × 137.4 | 133.35 | 16 | 74.6 | Q-325 | I-325 | G-325 |
| 40 × 20 × 14 | 10 | 16 | 5.6 | Q-326 | I-326 | G-326 |
| 40 × 20 × 104 | 100 | 16 | 56.0 | Q-327 | I-327 | G-327 |
Comparison with Standard Cuvettes
Standard cuvettes typically hold only a few milliliters of sample, while this design supports significantly larger volumes, making it suitable for specialized or research-level applications.
Related Products

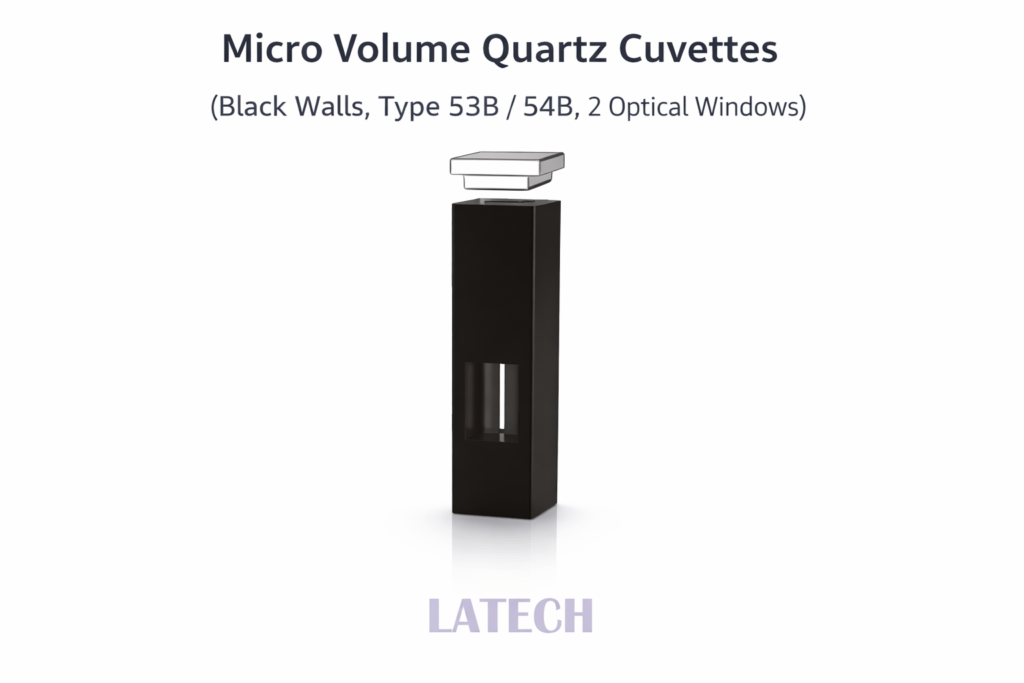

Micro Volume Quartz Cuvette (Black Walls, Type 53B / 54B, 2 Optical Windows)
