Cuvettes

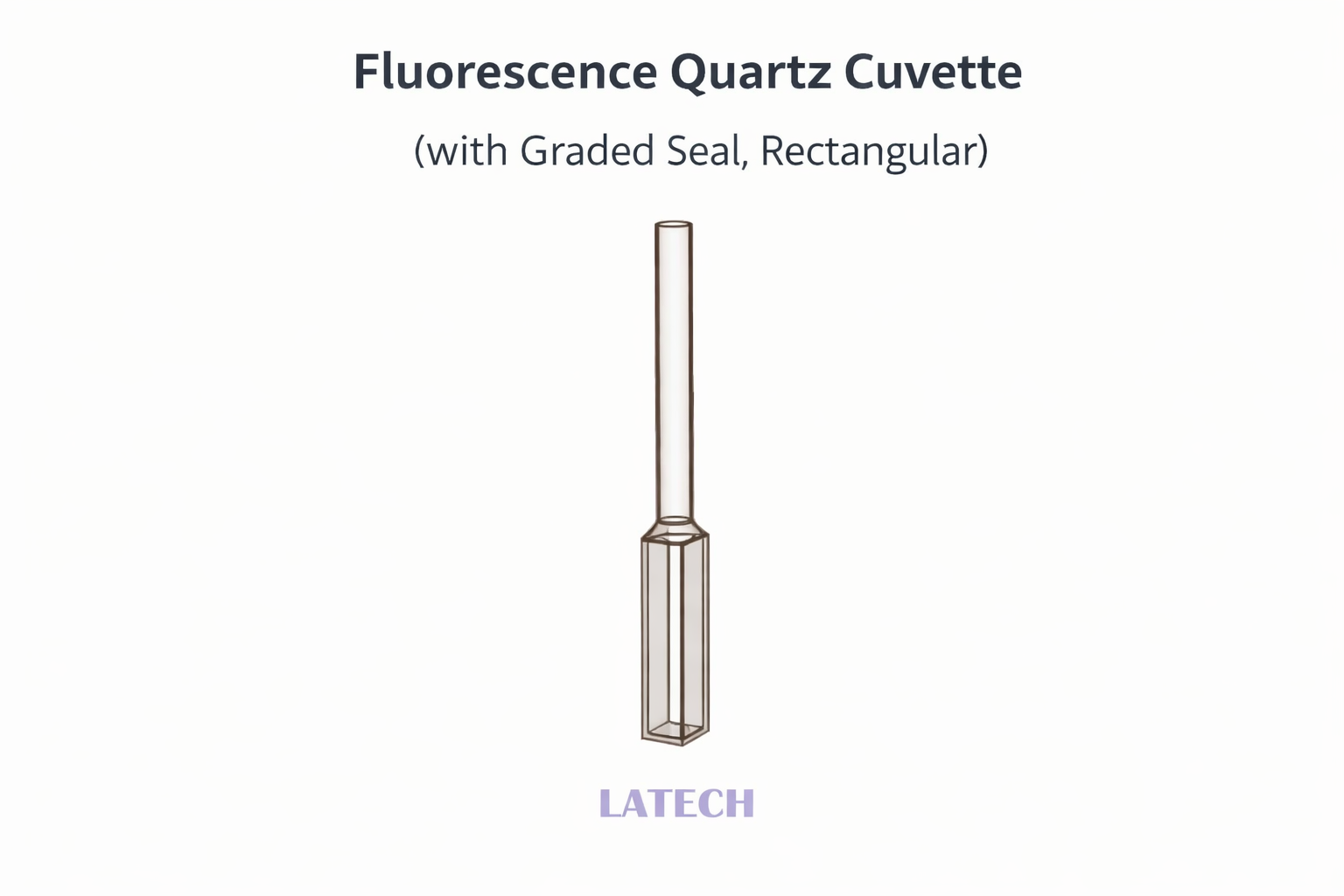

Fluorescence Quartz Cuvette with Graded Seal (Rectangular)

Designed for fluorescence measurements with sealed sample handling, featuring a long inlet for controlled sample loading and improved measurement stability.

Enquire about this product ↗
Prefer a quick conversation?WhatsApp us +65 8176 3868

Fluorescence Quartz Cuvette with Graded Seal (Rectangular) Specifications

Key features
Four clear optical windows for fluorescence detection / Graded seal for improved sealing and reduced evaporation
Description

Description

This rectangular fluorescence cuvette is designed with a graded seal and extended inlet, allowing secure handling of sensitive or volatile samples.

The four clear optical windows enable high-sensitivity fluorescence measurements from multiple directions, ensuring accurate signal detection.

The graded seal design helps:

  • Reduce sample evaporation
  • Improve sealing performance
  • Maintain sample stability during measurement

The long inlet allows convenient sample injection and is suitable for controlled or repeatable experimental setups.

Applications

Applications

  • Fluorescence spectroscopy
  • Sensitive or volatile sample analysis
  • Chemical and biological fluorescence studies
  • Controlled injection or sealed measurement systems
Key Features

Key Features

  • Four clear optical windows for fluorescence detection
  • Graded seal for improved sealing and reduced evaporation
  • Long inlet for controlled sample loading
  • Suitable for sensitive or reactive samples



Available Materials

Available Materials

  • Quartz (190–2500 nm)
  • IR Quartz (250–3500 nm)
  • Optical Glass (340–2500 nm)

Specifications

Typical configuration includes 10 mm path length with small sample volume (~3.5 mL), suitable for fluorescence measurements requiring high sensitivity.

Outside Dimension

(H × W × D, mm)

Path Length

(mm)

Indisde Width

(mm)

Volume

(mL)

Serial Number

ES-Quartz

190-2500 nm

IR-Quartz

250-3500 nm

Optical Glass

340-2500 nm

45 × 12.5 × 12.5 10 10 3.5 Q-714 I-714 G-714
Tube OD 8 mm; Overall height 120 mm
Comparison with Standard Fluorescence Cuvettes

Comparison with Standard Fluorescence Cuvettes

Standard fluorescence cuvettes are typically open or loosely sealed.

This design provides:

  • Better sealing for sensitive samples
  • Reduced evaporation during measurement
  • More stable and repeatable results
