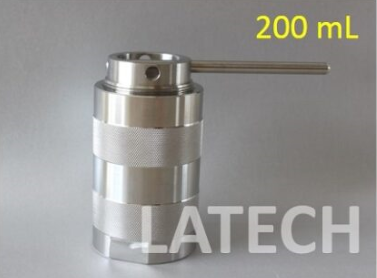

Autoclave
ZX-TFM 200 mL
ZX-TFM Autoclaves, 100 mL / 230 °C / 580 psig
Enquire about this product ↗
Prefer a quick conversation?WhatsApp us +65 8176 3868
ZX-TFM 200 mL Specifications
Specification table 1
- Product
- ZX Series Autoclave / Acid Digestion Vessel
- Model
- ZX-TFM-200
- Material
- Stainless Steel Shell / TFM Liner
- Volume
- 200 mL
- Max Temperature
- 230 °C
- Max Pressure
- 580 psig (= 40 bar = 4 MPa)
- Useful Links
-
TFM is a PTFE derivative, with slightly modified chain structures as compared to PTFE. TFM exhibits better temperature durability than PTFE for autoclave applications. view more…

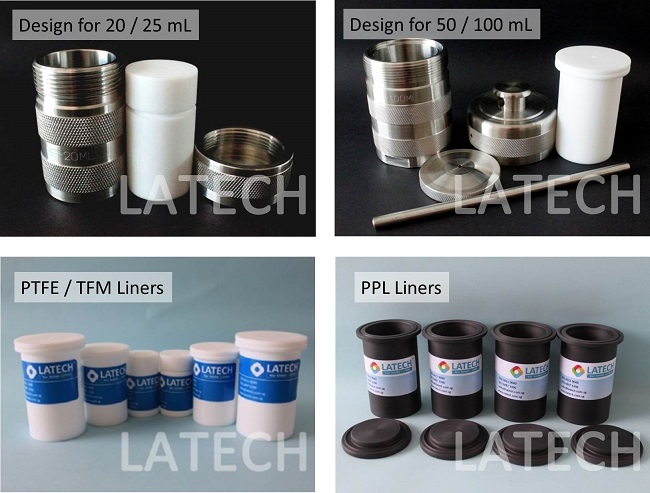

TFM Liner Dimensions
| Volume |
Outer Diameter (mm) |
Outer Height (mm) |
Inner Diameter (mm) |
Inner Depth (mm) |
|---|---|---|---|---|
| 20 mL | 34 | 61 | 22 | 48 |
| 25 mL | 34 | 61 | 25 | 48 |
| 50 mL | 43 | 72 | 33 | 61 |
| 100 mL | 51 | 85 | 42 | 74 |
| 200 mL | 69 | 96 | 56 | 88 |
TFM Liner Dimensions
TFM Liner Dimensions
