Bare TEM Grids – Double Folding (Oyster Type)
Double folding TEM grids designed to securely hold samples by sandwiching them between two grid layers.
Description
🔹 Description

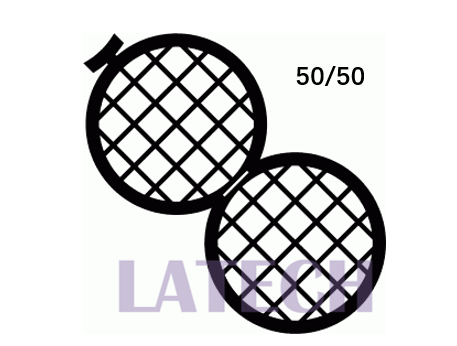

Double folding TEM grids consist of two grid layers connected by a hinge, allowing the grid to be folded and closed to trap the specimen securely between them.
This design is particularly useful for samples that cannot adhere to standard TEM grids, such as metal foils or larger particles.
🔹 Specifications
| Product: | Transmission electron microscopy (TEM) grids / copper (Cu) grids |
| Model: | Two bare grids, can be folded to fix samples |
| Grid diameter: | 3.05 mm |
| Mesh: |
•50 / 50 mesh, 50 / 75 mesh, 50 / 100 mesh •100 / 100 mesh, 100 / 150 mesh, 100 / 200 mesh |
| Material: | Cu / Ni / Mo |
🔹 Key Features
- Hinged double-layer design for sample enclosure
- Secure clamping of specimens between two grids
- Prevents sample displacement during handling
- Suitable for thicker or non-adherent samples
- Standard TEM grid compatibility
🔹 Applications
- Thin metal foil TEM analysis
- Non-adherent or loose particle samples
- Metallurgical sample preparation
- Samples too thick for support films
🔹 Standard vs Double Folding Grids
| Type | Features |
|---|---|
| Standard Grid | Sample placed on surface or film |
| Double Folding Grid | Sample clamped between two grids |
🔹 Related Dimensions for TEM Grids
| Mesh | Hole Size / µm | Line Width / µm |
| 50 | 420 | 80 |
| 75 | 285 | 55 |
| 100 | 205 | 45 |
| 150 | 125 | 40 |
| 175 | 108 | 37 |
| 200 | 90 | 35 |
| 250 | 70 | 30 |
| 300 | 58 | 25 |
| 400 | 37 | 25 |
| 1000 | 19 | 5 |
| 2000 | 7.5 | 5 |
